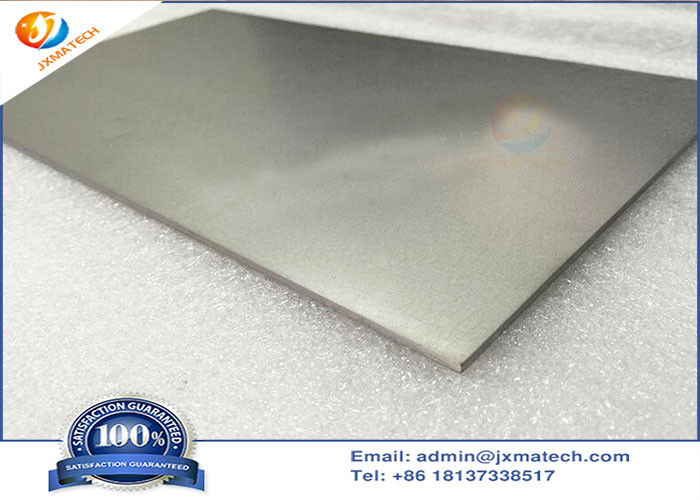

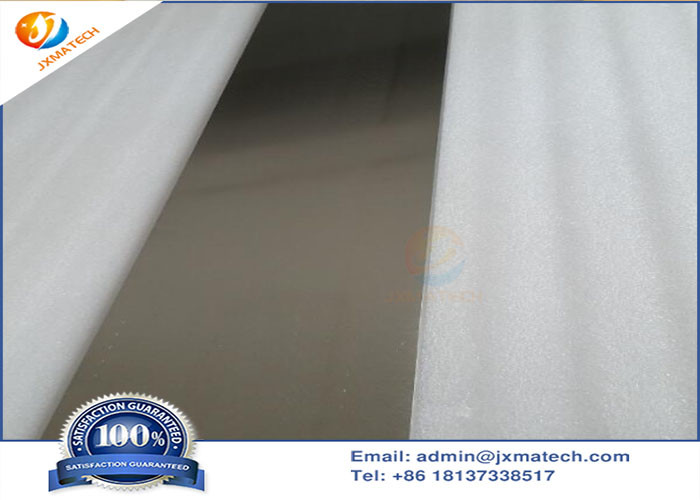

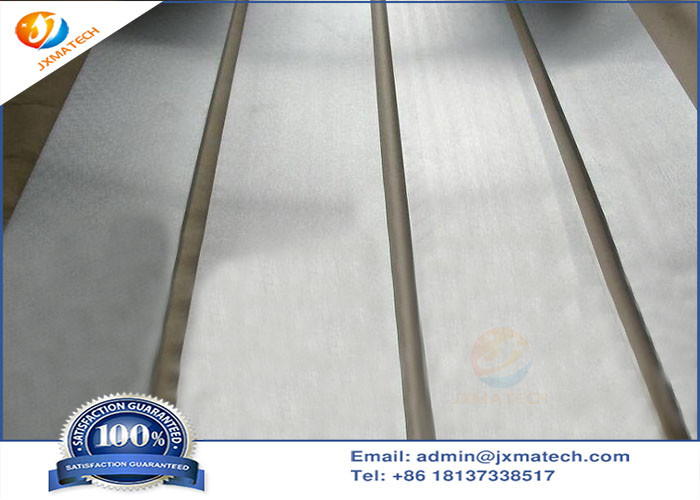

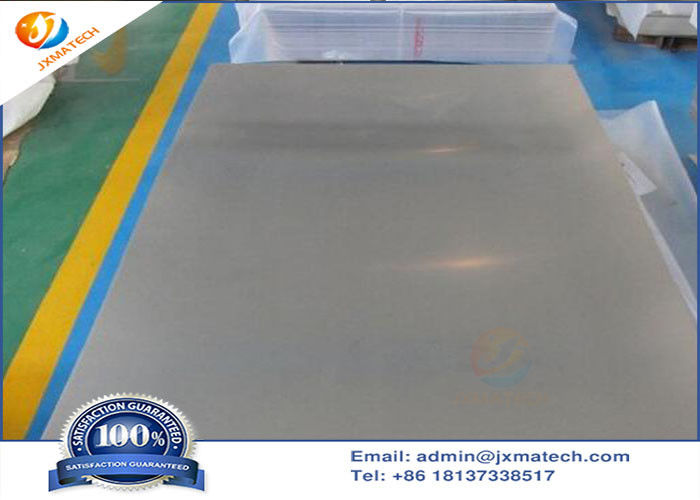

2mm Polished Zirconium Plate Pure Zr 702 Sheet
2mm Polished Zirconium Plate Pure Zr 702 Sheet
2mm Polished Zirconium Plate Pure Zr 702 Sheet 2mm Polished Zirconium Plate Pure Zr 702 Sheet 2mm Polished Zirconium Plate Pure Zr 702 Sheet 2mm Polished Zirconium Plate Pure Zr 702 Sheet 2mm Polished Zirconium Plate Pure Zr 702 Sheet

2mm Polished Zirconium Plate Pure Zr 702 Sheet

Product Details:
Place of Origin: China
Brand Name: 2mm pure Zr 702 sheet polished zirconium plate
Certification: ASTM B550
Model Number: ZR0900
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: USD
Packaging Details: Stadnard exported package
Delivery Time: 10-30days
Contact Now

Detail Information
Material: Zr702, Zr704, Zr705 Thickness: 0.5~50mm, Or 0.02"~2"
Width: <1000mm, Or 36" Length: <2000mm, Or 72"
State: Annealed Name: 2mm Pure Zr 702 Sheet Polished Zirconium Plate
Highlight:

Pure Zr 702 Sheet

,

2mm Polished Zirconium Plate

,

2mm Zr 702 Zirconium Plate

Product Description

Pure Zr Plate Zr Sheet Bright Surface

Product Name:

  • Zr Plate Zr Sheet shows high resistance to corrosion. At room temperature it builds an oxide layer which protects the metal from most acidic and alkaline environments.

  • The most important physical property of zirconium metal is arguably its low neutron-capture cross-section which is widely used in nuclear applications.

  • Zirconium sheets and foils are easy to form.

  • Zirconium Sheets UNS R60702

  • Material:

  • UNS R60702, Zr702

  • Standard:

  • ASTM B 551/B 551M

  • Size:

  • Thickness 0.5-50 mm; Width 30-1000 mm; Length 30-2000 mm

  • Synonyms:

  • Zr Sheets, Zr Plate, Zr Board, Zirconium Sheets, Zirconium Plate, Zirconium Board, UNS R60702, Zr702, ASTM B 551

Zr Plate Zr Sheet  Application

1.Chemical processing, medical instruments etc.

2.Aerospace,Indusrty,Navigation,Smelting,Chemical plants, and so on.
3.Plate heat exchanger, and condensers
Chemical and medical equipment.



  • 2mm Polished Zirconium Plate Pure Zr 702 Sheet 02mm Polished Zirconium Plate Pure Zr 702 Sheet 1

Chemical composition for Zr 702 sheet polished zirconium plate

Grade Zr+Hf Hf Fe+Cr Sn H N C O Nb
R60702 99.2% <4.5% <0.20% - <0.005% <0.015% <0.030% <0.15% -
R60704 97.5% <4.5% 0.2-0.4% 1.0-2.0% <0.005% <0.015% <0.030% <0.16% -
R60705 95.5% <4.5% <0.2% - <0.005% <0.015% <0.050% <0.16% 2.0-3.0%

Mechanical Properties of Zr 702 sheet polished zirconium plate

ASTM B551 Tensile Strength Yield Strength Elongation Bend Test
Grade ksi MPa ksi MPa min. % *T
R60700 ≤55 ≤380 ≤44 ≤305 20 5T
R60702 ≥55 ≥380 ≥30 ≥205 16 5T
R60704 ≥60 ≥415 ≥35 ≥240 14 5T
R60705 ≥80 ≥550 ≥55 ≥380 16 3T
R60706 ≥74 ≥510 ≥50 ≥345 14 2.5T
