High Purity Zirconium Disc Zr702 Target
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ASTM B551 Zirconium Plate And Zirconium Alloy Sheet |
| Certification: | ASTM B550 |
| Model Number: | ZR0900 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10kgs |
| Price: | USD |
| Packaging Details: | Stadnard exported package |
| Delivery Time: | 10-30days |
|
Detail Information |
|||
| Material: | Zr702, Zr704, Zr705 | Thickness: | 0.5~50mm, Or 0.02"~2" |
|---|---|---|---|
| Width: | <1000mm, Or 36" | Length: | <2000mm, Or 72" |
| State: | Annealed | Name: | ASTM B551 Zirconium Plate And Zirconium Alloy Sheet |
| Highlight: | ASTM B551 Zirconium Plate,ASTM B551 Zirconium Alloy Sheet,Thickness 2" Zirconium Plate |
||
Product Description
ASTM B551 Zirconium Plate And Zirconium Alloy Sheet
Appearance: Silver Metallic luster
Purity: 99.2% Zr, 95.5%Zr
Grade:R60700, R60702,R60705
Surface treatment: Alkaline Cleaning, Polished
Size: Φ0.25 ~ Φ100mm
Material feature:
ASTM B551 Zirconium Plate And Zirconium Alloy Sheet is a chemical element, the element symbol Zr, which has an atomic number of 40 and is a high-melting metal in a light gray color. Zirconium surface easy to form a layer of oxide film, with luster, so similar to the appearance of steel.Corrosion resistant, soluble in hydrofluoric acid and aqua aqua, at high temperature, can react with non-metallic elements and many metal elements to form solid solution compounds.

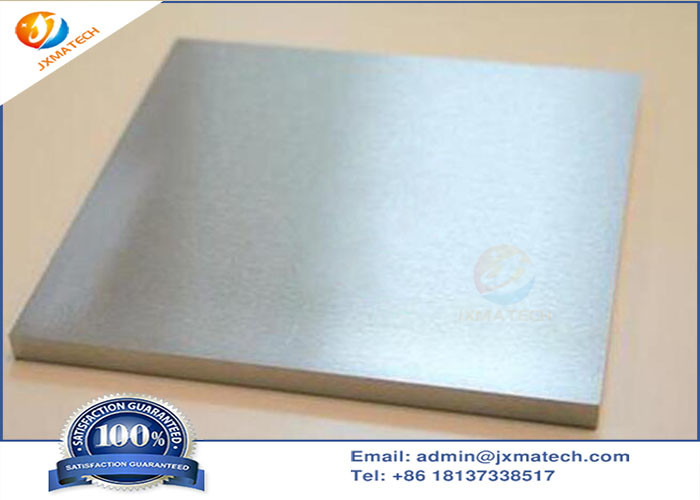

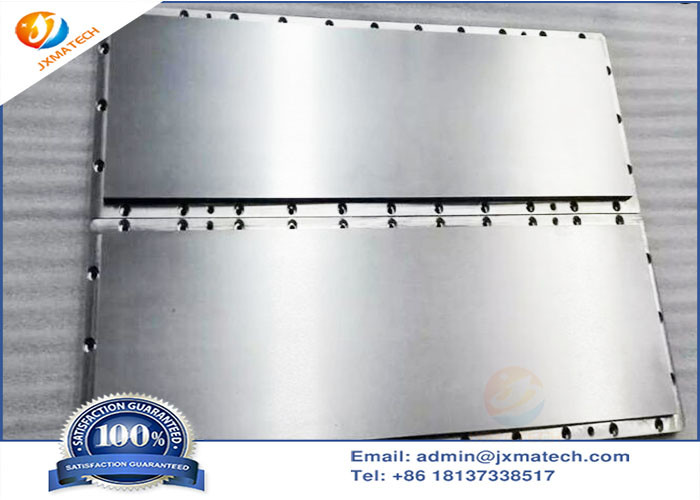

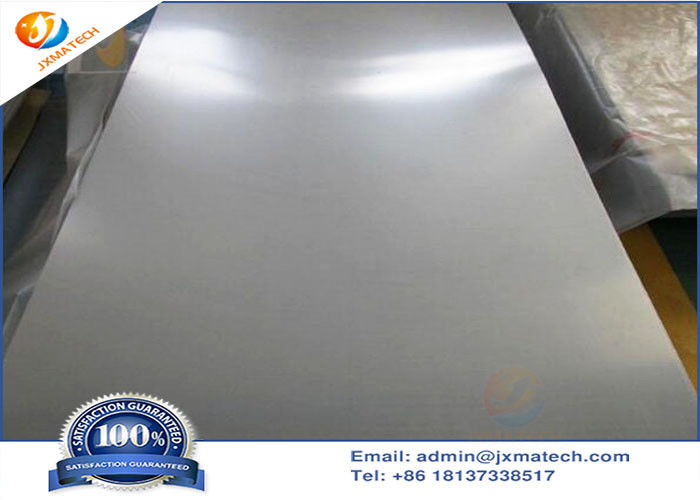

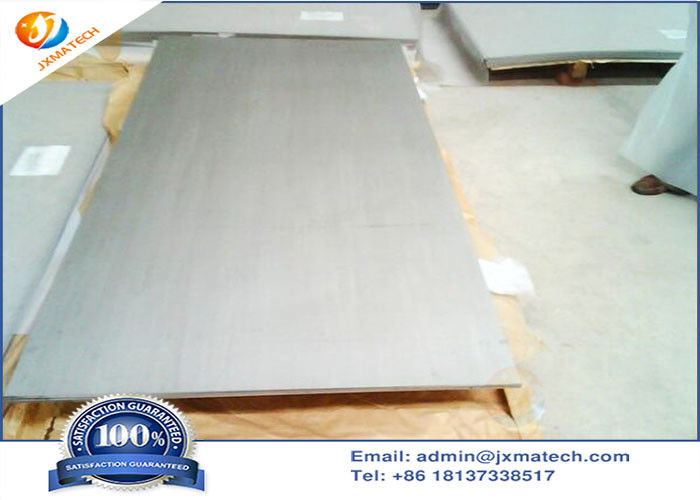

Zirconium Plate And Zirconium Alloy Sheet Picture:
Specification
| Item Name |
Zirconium Alloy Sheet |
| Material | zirconium ,zirconium alloy |
| Grade | R60702,R60702, R60704, R60705 |
| Standard | DIN,GB,ISO,JIS,GB/T21183-2007,ASTM B 551 |
| Specification |
zirconium sheets/plates Wall thickness(0.5~10mm) Width(50~2000mm) length(1000-6000mm)zirconium |
| Surface Treatment | Polished, pickled,Dependent on different thickness. |
| Features | Extremely high corrosion resistance, extremely high melting point, ultra-high hardness and strength, and outstanding nuclear properties |
| Applications | Heat exchanger, condenser, chlor-alkali and other chemical equipment, ships, seawater desalination, power plant equipment industries. |
Company show 1. About us this company is specialized in the manufacture of titanium, zirconium nickel and tantalum material, its core business is: non-ferrous metal materials, clad metal materials and pressure vessels. 2. Why choose rich experience: we have been engaged in machining for 10 years. Our company had good reputation with customers from american, europe, north america, and australia, india etc. We also have a good team for sale and quality control. Good service: we will respond to you within 24 hours. We manufacture non-standard parts according to your drawings. And we will continue to serve you after sales and will be responsible for the mistakes from us. Low price: the prices of our production are reasonable! the prices will be much better if your quantity is good.
Chemical composition for ASTM B551 Zirconium Plate And Zirconium Alloy Sheet
| Grade | Zr+Hf | Hf | Fe+Cr | Sn | H | N | C | O | Nb |
| R60702 | 99.2% | <4.5% | <0.20% | - | <0.005% | <0.015% | <0.030% | <0.15% | - |
| R60704 | 97.5% | <4.5% | 0.2-0.4% | 1.0-2.0% | <0.005% | <0.015% | <0.030% | <0.16% | - |
| R60705 | 95.5% | <4.5% | <0.2% | - | <0.005% | <0.015% | <0.050% | <0.16% | 2.0-3.0% |
| ASTM B551 | Tensile Strength | Yield Strength | Elongation | Bend Test | ||
|---|---|---|---|---|---|---|
| Grade | ksi | MPa | ksi | MPa | min. % | *T |
| R60700 | ≤55 | ≤380 | ≤44 | ≤305 | 20 | 5T |
| R60702 | ≥55 | ≥380 | ≥30 | ≥205 | 16 | 5T |
| R60704 | ≥60 | ≥415 | ≥35 | ≥240 | 14 | 5T |
| R60705 | ≥80 | ≥550 | ≥55 | ≥380 | 16 | 3T |
| R60706 | ≥74 | ≥510 | ≥50 | ≥345 | 14 | 2.5T |
