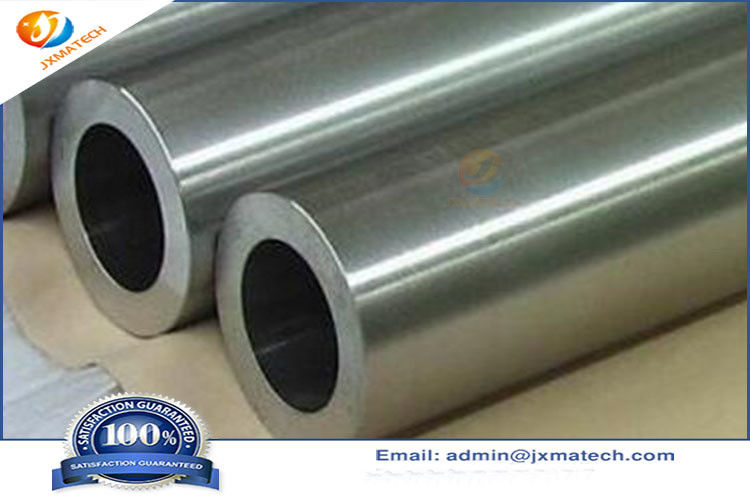

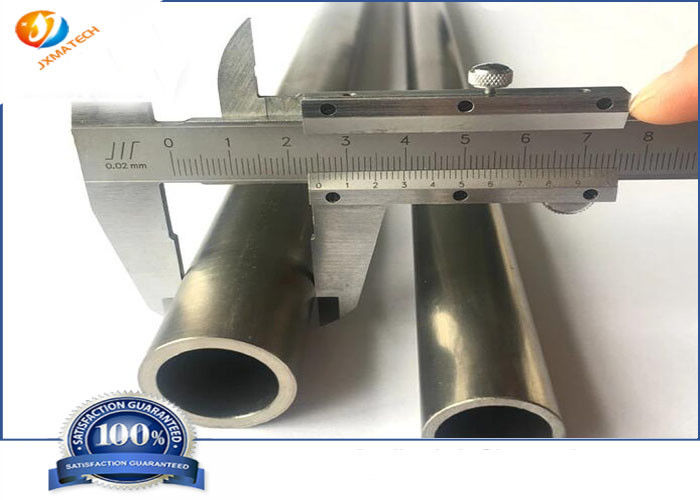

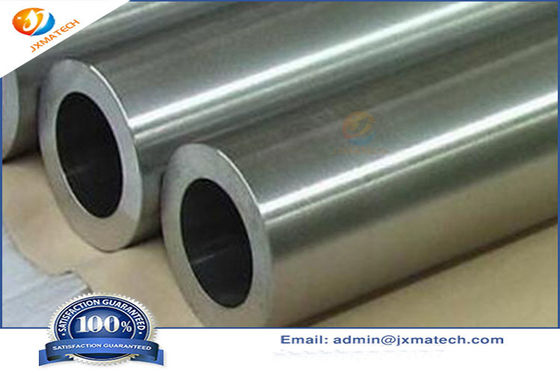

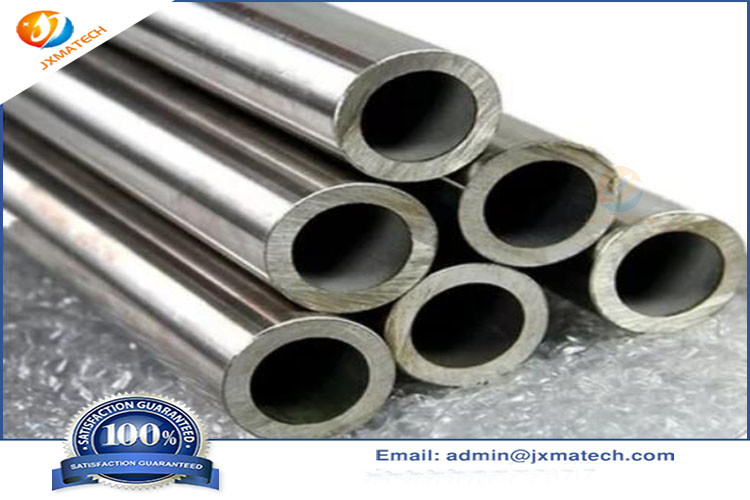

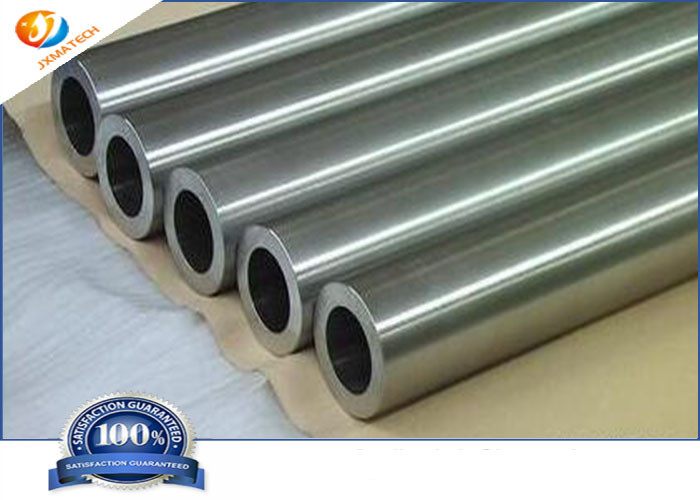

Cold Rolling Coiled Zirconium Tube 702 UNS R60702 For Heat Exchanger
|
Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | JINXING |
| Certification: | ISO 9001 |
| Model Number: | Zr702 Zirconium Seamless Piping |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 20 kg |
| Price: | Negotiable |
| Packaging Details: | plywood cases |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 kg per month |
|
Detail Information |
|||
| Product: | Zirconium Seamless Piping | Grade: | Zr702 |
|---|---|---|---|
| Density: | 6.51 G/cc | Purity: | >99.2% |
| Tensile Strength: | >215 MPa | Elongation: | >16% |
| UNS Number: | R60702 | Application: | Corrosive Fluid Pipeline Systems |
| Highlight: | Zr702 Seamless Zirconium Tube,UNS R60702 Seamless Zirconium Tube,zirconium pipe for Fluid Pipeline |
||
Product Description
Zirconium Seamless Piping is made of metal zirconium and other metals. Due to the excellent nuclear performance and corrosion resistance of zirconium, zirconium alloy tubes are often used in the internal structure of nuclear fuel assemblies and water-cooled reactors. Pure zirconium pipe is mainly used for manufacturing chemical equipment.
CHEMICAL COMPOSITION (NOMINAL)
| Type | Zr+Hf | Hf | Fe+Cr | H | N | C | O |
| Zr702 | <99.2 | <4.5 | <0.2 | <0.005 | <0.025 | <0.05 | <0.16 |
Density: 6.5g/cm
Melting Point: 1852°C
Thermal Conductivity: 22W/(m °C)
Elastic bend modulus: 99.3GPa
Thermal Expansions: 5.4x10 /°C
APPLICATIONS
Zirconium Seamless Pipe has corrosion resistance in most organic and mineral acids. The typical application of seamless zirconium tube is as heat exchanger, cooler, condenser and piping system in the production of urea, acetic acid, formic acid, nitric acid and methyl methacrylate.
Our zirconium pipe is clearly labeled to ensure effective identification and quality control. Special care should be taken during storage or transportation to avoid any damage.
