Cold Rolling Coiled Zirconium Tube 702 UNS R60702 For Heat Exchanger
|
Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | JINXING Zr705 |
| Certification: | ISO 9001 |
| Model Number: | Zr705 Tube Pipe |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50 kg |
| Price: | Negotiable |
| Packaging Details: | plywood cases |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 kg per month |
|
Detail Information |
|||
| Product Name: | Zr705 Tube Pipe | Material: | Zirconium |
|---|---|---|---|
| Standard: | ASME SB658 | Density: | 6.51 G/cc |
| Tensile Strength: | >215 MPa | Elongation: | >16% |
| UNS: | R60705 / R60702 | Applications: | Chemical And Water-Cooled Reactors |
| Highlight: | Zr705 ASME Zirconium Tube,Zirconium Tube For Chemical Reactors,Water Cooled Reactors Zirconium Tube |
||
Product Description
Zirconium Zr705 Tube Pipe have strong affinity. They react with oxygen, hydrogen and nitrogen at about 200, 300 and 400 ℃ respectively. The reaction is rapid at higher temperature. Therefore, the melting and heat treatment should be carried out in vacuum furnace. When heat processing is carried out in the atmosphere, proper protection measures shall be taken and the operation time under high temperature shall be shortened.
CHEMICAL COMPOSITIONS (NOMINAL)
| Type | Zr+Hf | Hf | Fe+Cr | H | N | C | O | Nb |
|---|---|---|---|---|---|---|---|---|
| Zr702 | >99.2 | <4.5 | <0.2 | <0.005 | <0.025 | <0.05 | <0.16 | / |
| Zr705 | 95.5 | <4.5 | <0.2 | <0.005 | <0.025 | <0.05 | <0.18 | 2.0-3.0 |
Density: 6.51 g/cm3
Melting Point: 1852°C
Thermal Conductivity: 22 W/(m °C)
Elastic bend modulus: 99.3 GPa
Thermal Expansions: 5.4x10 /°C
PARAMETERS (STANDARD)
Executive standard: ASME SB658 / ASTM b658-07
Zirconium Zr705 Tube Pipe outer diameter 6.0-114mm
Zirconium Zr705 Tube Pipe wall thickness 0.3-8.0 mm
Zirconium Zr705 Tube Pipe length ≤ 18000mm

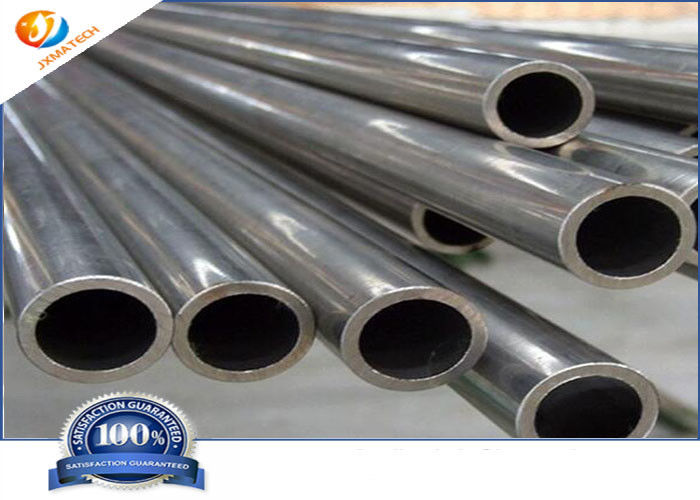

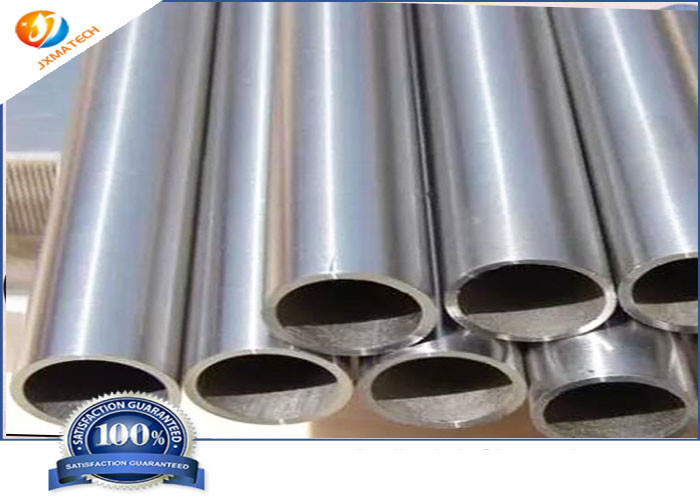

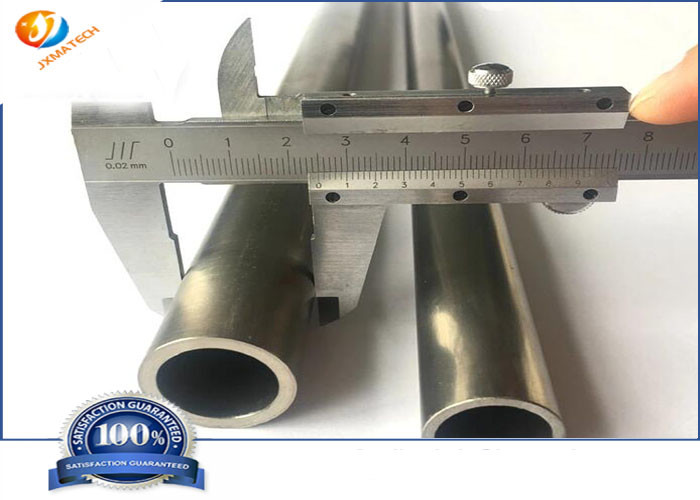

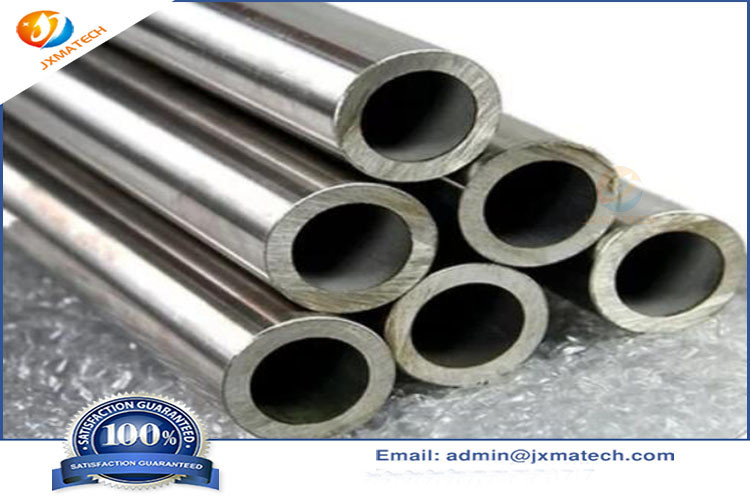

Zirconium Zr705 Tube Pipe Picture:
The water cooling of reactor zirconium alloys elevates requirement for their resistance to oxidation-related nodular corrosion. Furthermore, oxidative reaction of zirconium with water releases hydrogen gas, which partly diffuses into the alloy and forms zirconium hydrides. The hydrides are less dense and are weaker mechanically than the alloy; their formation results in blistering and cracking of the cladding – a phenomenon known as hydrogen embrittlement.
