Annealed Zr702 Zr704 Zirconium Foil Zr Foil Corrosion Resistance
Annealed Zr702 Zr704 Zirconium Foil Zr Foil Corrosion Resistance
Annealed Zr702 Zr704 Zirconium Foil Zr Foil Corrosion Resistance Annealed Zr702 Zr704 Zirconium Foil Zr Foil Corrosion Resistance Annealed Zr702 Zr704 Zirconium Foil Zr Foil Corrosion Resistance Annealed Zr702 Zr704 Zirconium Foil Zr Foil Corrosion Resistance

Annealed Zr702 Zr704 Zirconium Foil Zr Foil Corrosion Resistance

Product Details:
Place of Origin: China
Brand Name: jx Zirconium Foil (Zr Foil)
Certification: ASTM
Model Number: plates
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: 100USD-200USd
Packaging Details: Standard packing
Delivery Time: 10-30days
Payment Terms: L/C, T/T
Supply Ability: 10ton/month
Contact Now

Detail Information
State: Annealed Rm(≥)/MPa: 379
Rp0.2(Pa: 207 A50mm(≥)/%: 16
Name: Zirconium Foil (Zr Foil) Material: Zr702, Zr704, Zr705
Highlight:

Zr704 Zirconium Foil

,

Zr702 Zirconium Foil

,

Zr704 Zr Foil

Product Description

Zirconium Foil (Zr Foil)

Zirconium Foil (Zr Foil) is a hard, lustrous, silvery coloured metal which is extracted from its ores (the oxide or zircon, ZrSiO4) by conversion to the tetrahalide followed by reduction with magnesium. The metal is extremely corrosion resistant due to the formation of a stable oxide film and is unaffected by acids (with the exception of HF) and alkalis.

As a result of its corrosion resistance, zirconium is widely used in the chemical industry where corrosive agents are used. Also, due to its excellent high temperature properties, coupled with its low neutron absorption, it is used in the construction of nuclear reactors. The pure metal is also used as a lining in jet engines. Zirconium is used as an alloying element, the resultant alloys having improved mechanical properties.

The chemical properties of zirconium are very similar to those of hafnium. As a result, the normal chemical processes used for the extraction of zirconium will not remove hafnium, which can be present in commercial grades of zirconium at levels as high as 4.5%. A high purity grade of zirconium containing less than 0.01% hafnium is used for nuclear applications.




Specifications Of  Zirconium Foil (Zr Foil)

Material
Zr702, Zr704, Zr705
aterial
Thickness 0.5~50mm, or 0.02"~2"
Width <1000mm>
Length <2000mm>


Composition of our Zirconium materials

  Zr 702 Zr 704 Zr 705 Zircaloy-2 Zircaloy-4
Sn / 1~2% 1~2% 1.2~1.7% 1.2~1.7%
Fe <0> 0.1~0.2% <0> 0.07~0.2% 0.07~0.2%
Cr <0> 0.1~0.2% <0> 0.05~0.15% 0.05~0.15%
Ni / / / 0.03~0.08% <0>
Hf 1~2.5% <4> <4>
Nb / / 2~3%
Zn+Hf ~99.5% ~97.5% ~95.5% ~98% ~98%


Physical Properties Zirconium Foil (Zr Foil)

Material State Rm(≥)/MPa Rp0.2(Pa A50mm(≥)/%

Zirconium 702

(UNS R60702)

 annealed 379 207 16

Zirconium 704

(UNS R60704)

 annealed 413 241 14

Zirconium 705

(UNS R60705)

 annealed 552 379 16

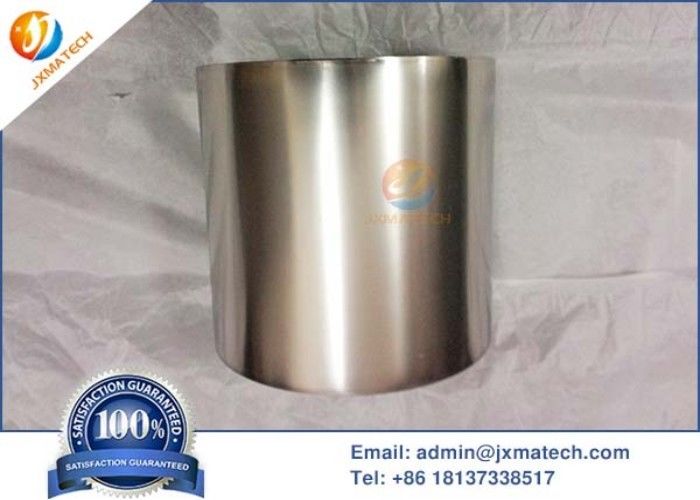

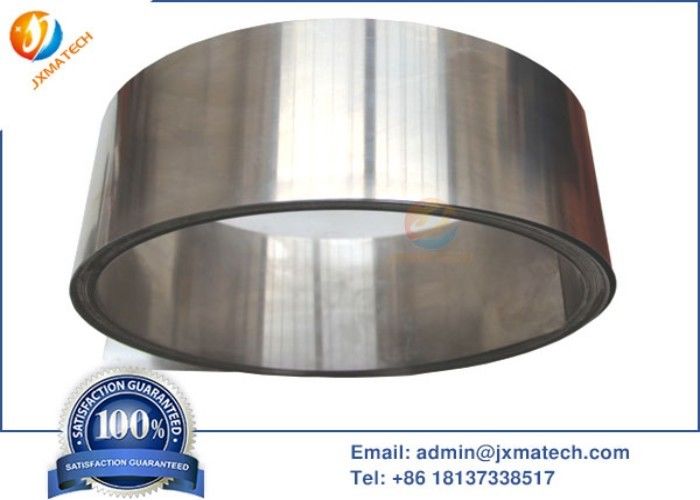

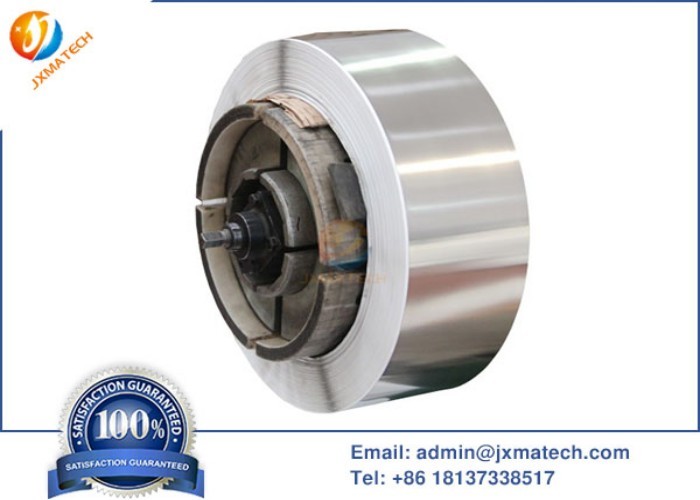

Zirconium Foil (Zr Foil)  Picture:

Annealed Zr702 Zr704 Zirconium Foil Zr Foil Corrosion Resistance 0Annealed Zr702 Zr704 Zirconium Foil Zr Foil Corrosion Resistance 1

Zirconium oxide, zirconia (ZrO2), is used as an opacifier in vitreous enamels as well as a pigment. However, the main applications of zirconia make use of its excellent strength and high temperature properties, and it is used to manufacture foundry crucibles, bricks, ceramics and abrasives. It has sufficient strength to enable it to be used to fabricate high precision knife blades.
