ASTM B658M Zirconium 705 Pipe For Chemical And Water Cooled Reactors Application
ASTM B658M Zirconium 705 Pipe For Chemical And Water Cooled Reactors Application
ASTM B658M Zirconium 705 Pipe For Chemical And Water Cooled Reactors Application ASTM B658M Zirconium 705 Pipe For Chemical And Water Cooled Reactors Application ASTM B658M Zirconium 705 Pipe For Chemical And Water Cooled Reactors Application ASTM B658M Zirconium 705 Pipe For Chemical And Water Cooled Reactors Application ASTM B658M Zirconium 705 Pipe For Chemical And Water Cooled Reactors Application

ASTM B658M Zirconium 705 Pipe For Chemical And Water Cooled Reactors Application

Product Details:
Place of Origin: CHINA
Brand Name: JINXING Zr705 Pipe
Certification: ISO 9001
Model Number: Zr705
Payment & Shipping Terms:
Minimum Order Quantity: 20 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month
Contact Now

Detail Information
Product: Zr705 Pipe Material: Zirconium Alloy
Standard: ASME B658M Density: 6.51 G/cc
Tensile Strength: >205 MPa Elongation: >16%
UNS: R60705 Applications: Chemical And Water-Cooled Reactors
Highlight:

B658M Zirconium 705 Pipe

,

Zirconium 705 Pipe Reactors

,

Zirconium 705 Pipe for Reactor

Product Description

Zirconium Zr705 Pipe ASTM B658M For Chemical And Water-Cooled Reactors Application

Zirconium Zr705 Pipe is a kind of metal with strong corrosion resistance, which is suitable for chemical corrosion-resistant equipment. Its acid resistance is better than that of titanium and various steels, and close to that of tantalum. Zirconium is also quite stable in alkali solution.
It is widely used in heat exchange equipment, such as tubular heat exchanger, coil heat exchanger, serpentine heat exchanger, condenser, evaporator and pipeline.

CHEMICAL COMPOSITION (NOMINAL)

Type Zr+Hf Hf Fe+Cr H N C O Nb
Zr702 >99.2 <4.5 <0.2 <0.005 <0.025 <0.05 <0.16 /
Zr705 95.5 <4.5 <0.2 <0.005 <0.025 <0.05 <0.18 2.0-3.0

Zirconium Zr705 Pipe Specifications

  • Seamless pipe OD(8-152) * t (0.5-15) * L (≤ 9000) mm
  • Welded pipe (outer diameter ≥ 10mm)

Executive Standards

ASTM B523 / B523M-18

ASME SB-523

ASTM B658 / B658M-11

ASME SB-658 / SB-658M

GB/T 26283-2010

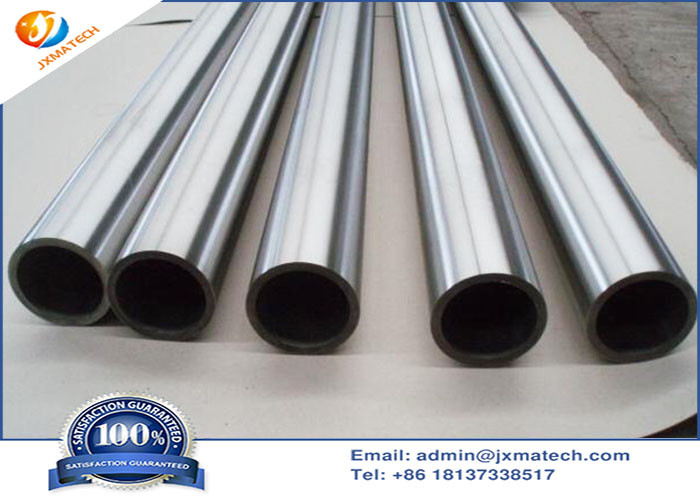

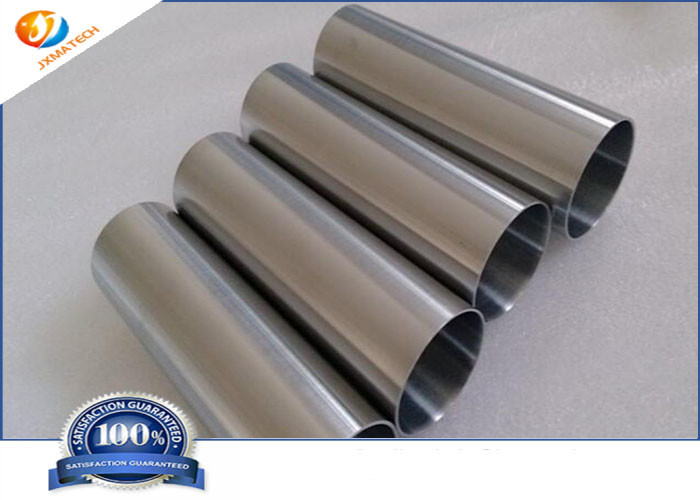

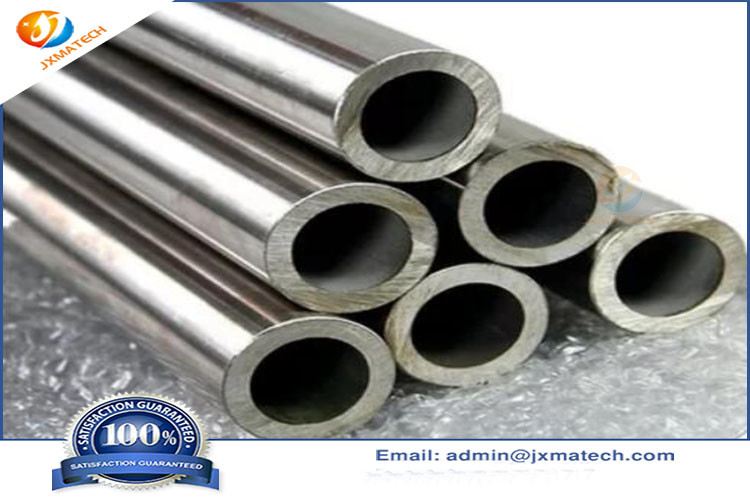

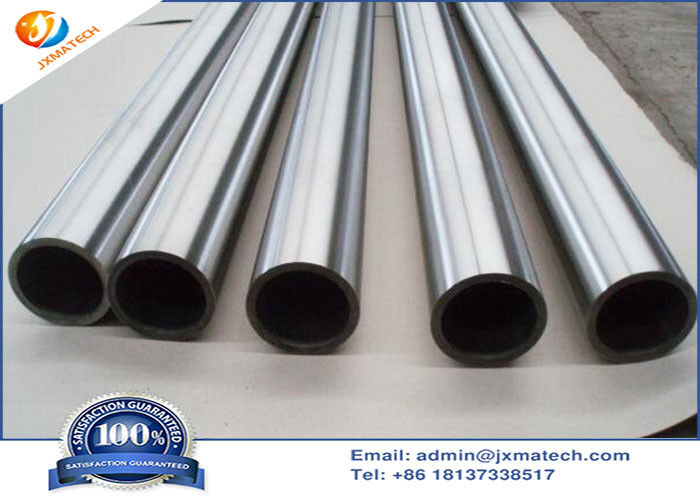

Zirconium Zr705 Pipe Picture:

ASTM B658M Zirconium 705 Pipe For Chemical And Water Cooled Reactors Application 0ASTM B658M Zirconium 705 Pipe For Chemical And Water Cooled Reactors Application 1



PARAMETERS

  • Specification: seamless pipe OD(8-152) * t (0.5-15) * L (≤ 9000) mm, welded pipe (outer diameter ≥ 10mm)

  • Executive Standards: ASTM B523 / B523M-18, ASME SB-523, ASTM B658 / B658M-11, ASME SB-658 / SB-658M, GB/T 26283-2010

  • Type

Zr702 and zr705 should be ASTM numbers. The only difference in composition is that the oxygen content of zr705 is a little higher, Zr702 is less than 0.16, and zr705 is less than 0.18. However, the mechanical properties of zr705 are better than that of Zr702. There is not much difference in corrosion resistance

PACKAGING

Zirconium Zr705 pipe is clearly tagged and labeled externally to make sure efficient identification and quality control. Great care is taken to avoid any damages which may be caused during transportation.
