ASTM B658 705 Zr Tube In Water - Cooled And Biological Reactors Application
ASTM B658 705 Zr Tube In Water - Cooled And Biological Reactors Application
ASTM B658 705 Zr Tube In Water - Cooled And Biological Reactors Application ASTM B658 705 Zr Tube In Water - Cooled And Biological Reactors Application ASTM B658 705 Zr Tube In Water - Cooled And Biological Reactors Application ASTM B658 705 Zr Tube In Water - Cooled And Biological Reactors Application ASTM B658 705 Zr Tube In Water - Cooled And Biological Reactors Application

ASTM B658 705 Zr Tube In Water - Cooled And Biological Reactors Application

Product Details:
Place of Origin: CHINA
Brand Name: JINXING Zr705
Certification: ISO 9001
Model Number: ASTM B658 Zirconium Zr705 Tube In Water-Cooled And Biological Reactors Application
Payment & Shipping Terms:
Minimum Order Quantity: 30 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month
Contact Now

Detail Information
Product: ASTM B658 Zirconium Zr705 Tube In Water-Cooled And Biological Reactors Application Material: Zirconium
Standard: ASME B658 / B658M Density: 6.51 G/cc
Tensile Strength: >215 MPa Elongation: >17%
UNS: R60705 Applications: Water-Cooled And Biological Reactors
Highlight:

705 Zr Tube

,

Biological Reactors Zr Tube

,

B658 Zr Tube

Product Description

ASTM B658 Zirconium Zr705 Tube In Water-Cooled And Biological Reactors Application

Zirconium Zr705 Tube is a rare metal with amazing corrosion resistance, high melting point, super hardness and strength. Zirconium Zr705 tube is widely used in aerospace, military, nuclear reaction, atomic energy and other fields. General industrial zirconium is mainly used in chemical industry and electronic industry, mainly for the corrosion resistance and conductivity of zirconium tube.



CHEMICAL COMPOSITIONS (NOMINAL)

Type Zr+Hf Hf Fe+Cr H N C O Nb
Zr702 >99.2 <4.5 <0.2 <0.005 <0.025 <0.05 <0.16 /
Zr705 95.5 <4.5 <0.2 <0.005 <0.025 <0.05 <0.18 2.0-3.0

Zirconium Zr705 Tube PHYSICAL PROPERTIES

Density: 6.51g/cm3
Melting Point: 1852°C
Thermal Conductivity: 22W/(m °C)
Elastic bend modulus: 99.3 GPa
Thermal Expansions: 5.4x10 /°C



PARAMETERS

  • Specification: seamless pipe OD(8-152) * t (0.5-15) * L (≤ 9000) mm, welded pipe (outer diameter ≥ 10mm)

  • Executive Standards: ASTM B523 / B523M-18, ASME SB-523, ASTM B658 / B658M-11, ASME SB-658 / SB-658M, GB/T 26283-2010

Application

Zirconium alloys are corrosion resistant and biocompatible, and therefore can be used for body implants. In one particular application, a Zr-2.5Nb alloy is formed into a knee or hip implant and then oxidized to produce a hard ceramic surface for use in bearing against a polyethylene component. This oxidized zirconium alloy material provides the beneficial surface properties of a ceramic (reduced friction and increased abrasion resistance), while retaining the beneficial bulk properties of the underlying metal (manufacturability, fracture toughness, and ductility), providing a good solution for these medical implant applications.

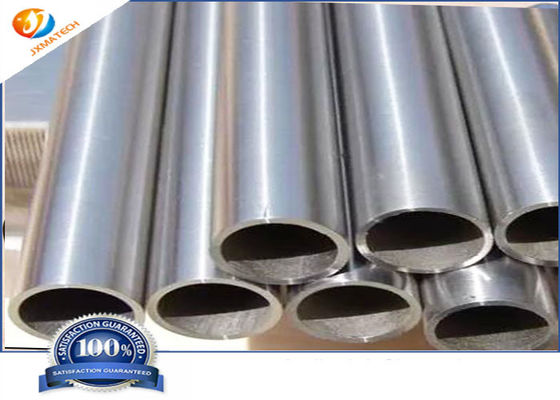

Zirconium Zr705 Tube Picture:

ASTM B658 705 Zr Tube In Water - Cooled And Biological Reactors Application 0ASTM B658 705 Zr Tube In Water - Cooled And Biological Reactors Application 1
