High Purity Zirconium Disc Zr702 Target
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | jx |
| Certification: | ASTM |
| Model Number: | Zirconium Plate |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10kgs |
| Price: | 100USD-200USd |
| Packaging Details: | Standard packing |
| Delivery Time: | 10-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10ton/month |
|
Detail Information |
|||
| Standards: | ASTM B551 | Grade: | Zr1, R60702 ,R60705 |
|---|---|---|---|
| Surface: | Polished | Density: | 6.51g/cm3 |
| Melting Point: | 1852℃ | Name: | Zirconium Plate |
Product Description
Zr702 Zirconium Plate Sheet Strip Sheets For Sale
Zirconium Plate is a chemical element with the symbol Zr and the atomic number 40. It is a lustrous, greyish-white metal which is a solid at room temperature – and at temperatures up to 1,855°C, thanks to an extremely high melting point. Zirconium is found exclusively in ore form as a naturally-occurring element in the Earth’s crust, and can be reduced to its pure form once mined. Naturally resistant to corrosion and oxidation, zirconium finds many uses across a range of industries.
How are Zirconium Plates Made?
Once zirconium has been mined and extracted, it can be manufactured into zirconium plate. Sintering is a common process used for the creation of zirconium plate, as the very high melting point of pure zirconium makes casting and forging difficult. Sintering produces a very high-quality zirconium plate, with uniform purity and dimensions throughout.
Properties of UNS R60702 Strip Prices
Standard : ASTM B551
Grade : Zr1, R60702 ,R60705
Surface : Polished
Density : 6.51g/cm3
Melting point : 1852℃
Boiling point : 4377℃
Application : Chemical processing, Aerospace, Industry, Navigation, Smelting, Chemical plants, Plate heat exchanger, and condensers, Chemical and medical equipment.
Zirconium 702 Plate Grade
Zirconium ingot, billet, slab
Zirconium plate, sheet, foil, strip, ribbon
Standards: ASTM B551, R60700, R60702, R60704, R60705, R60706, Zr2, Zr4, AMS, MIL, JIS, R60001, R60802, R60804, R60901, R60904
Size available: Thick 0.02mm Min * Wide 1200mm Max * Long 3000mm max

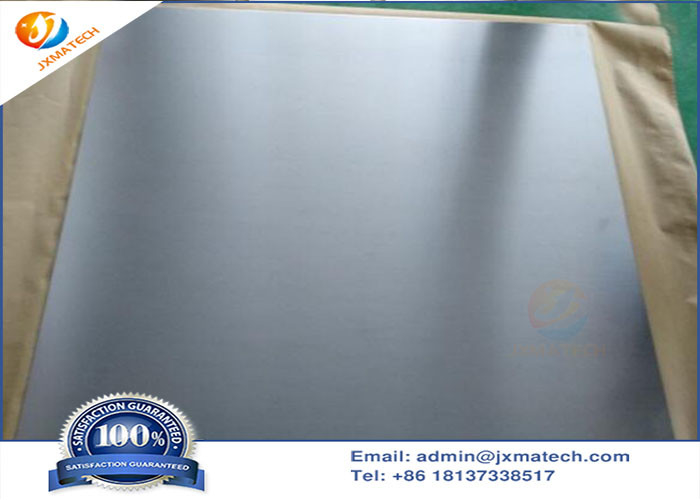

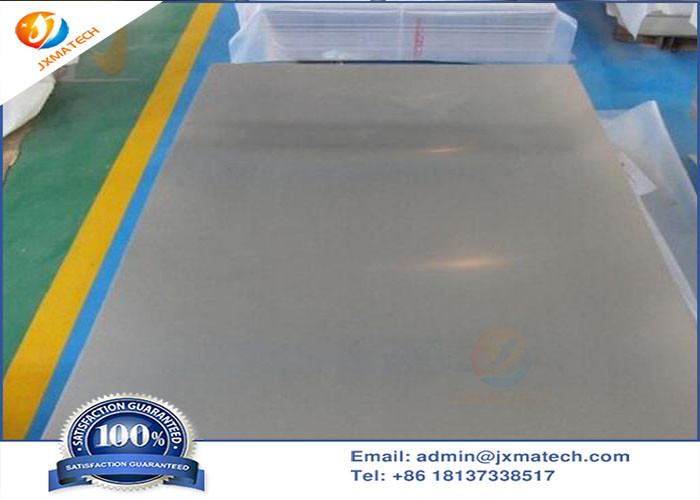

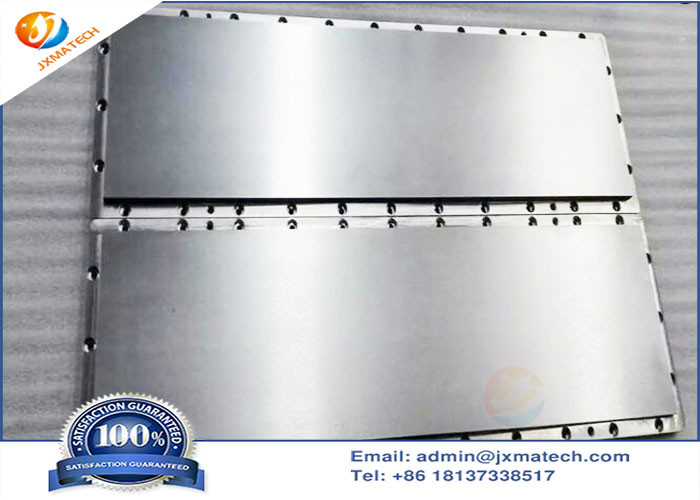

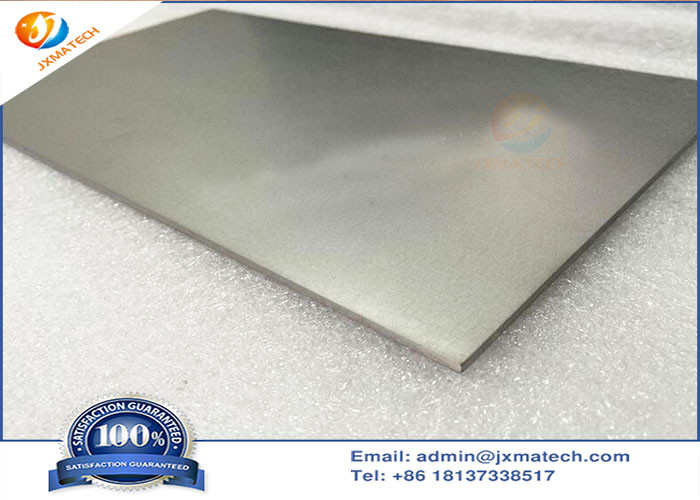

Zirconium plate Picture:
Features of Zirconium Sheet
For commercial Application (Hf ≤4.5%):
UNS R60700 (Zr1): Commercially pure, Zr+Hf≥99.2
UNS R60702 (Zr3): Commercially pure, Zr+Hf≥99.2
UNS R60704 (Zirconium-Tin alloy): Zr-1.5%Sn, Zr+Hf≥97.5
UNS R60705 (Zr5, Zirconium-Niobium alloy): Zr-2.5%Nb, Zr+Hf≥95.5, O≤0.18
UNS R60706 (Zirconium-Niobium alloy): Zr-2.5%Nb, Zr+Hf≥95.5, O≤0.16
For Nuclear Industry (Reactor grade, Hf ≤ 0.01%)
UNS R60001 (Zr0):
UNS R60802 (Zr2, Zircaloy2, Zirconium-Tin alloy): Zr-1.5Sn-0.15Fe-0.1Cr-0.05Ni
UNS R60804 (Zr4, Zircaloy4, Zirconium-Tin alloy): Zr-1.5Sn-0.2Fe-0.1Cr
UNS R60901 (Zirconium-Niobium alloy): Zr-2.5Nb, O-0.1%
UNS R60904 (Zirconium-Niobium alloy): Zr-2.5Nb
Zr-1Nb (Zr-1%Nb alloy)
Specifications Of Zirconium Plate
| Material | Zr702, Zr704, Zr705 |
| Thickness | 0.5~50mm, or 0.02"~2" |
| Width | <1000mm> |
| Length | <2000mm> |
Composition of our Zirconium materials
| Zr 702 | Zr 704 | Zr 705 | Zircaloy-2 | Zircaloy-4 | |
| Sn | / | 1~2% | 1~2% | 1.2~1.7% | 1.2~1.7% |
| Fe | <0> | 0.1~0.2% | <0> | 0.07~0.2% | 0.07~0.2% |
| Cr | <0> | 0.1~0.2% | <0> | 0.05~0.15% | 0.05~0.15% |
| Ni | / | / | / | 0.03~0.08% | <0> |
| Hf | 1~2.5% | <4> | <4> | ||
| Nb | / | / | 2~3% | ||
| Zn+Hf | ~99.5% | ~97.5% | ~95.5% | ~98% | ~98% |
Physical Properties
| Material | State | Rm(≥)/MPa | Rp0.2(Pa | A50mm(≥)/% |
|
Zirconium 702 (UNS R60702) |
annealed | 379 | 207 | 16 |
|
Zirconium 704 (UNS R60704) |
annealed | 413 | 241 | 14 |
|
Zirconium 705 (UNS R60705) |
annealed | 552 | 379 | 16 |
Where is Zirconium Found?
Zirconium is found in ore form in the Earth’s crust, usually in the form of zircon, its most plentiful ore, and is mined across the world. The main producers of zircon are Australia and South Africa, with economically-significant quantities also coming from Brazil, Russia, India and the USA, among a few other nations.
