UNS R60705 Zirconium Pipe Zr705 In Water-Cooled Reactors Applications ASTM B658
UNS R60705 Zirconium Pipe Zr705 In Water-Cooled Reactors Applications ASTM B658
UNS R60705 Zirconium Pipe Zr705 In Water-Cooled Reactors Applications ASTM B658 UNS R60705 Zirconium Pipe Zr705 In Water-Cooled Reactors Applications ASTM B658 UNS R60705 Zirconium Pipe Zr705 In Water-Cooled Reactors Applications ASTM B658 UNS R60705 Zirconium Pipe Zr705 In Water-Cooled Reactors Applications ASTM B658 UNS R60705 Zirconium Pipe Zr705 In Water-Cooled Reactors Applications ASTM B658

UNS R60705 Zirconium Pipe Zr705 In Water-Cooled Reactors Applications ASTM B658

Product Details:
Place of Origin: CHINA
Brand Name: JINXING Zirconium Pipe
Certification: ISO 9001
Model Number: Zr705
Payment & Shipping Terms:
Minimum Order Quantity: 20 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month
Contact Now

Detail Information
Product: Zirconium Pipe Type: Zr-705
Standard: ASME B658 Density: 6.51 G/cc
Tensile Strength: >205 MPa Elongation: >15%
UNS: R60705 Applications: Water-Cooled Reactors
Highlight:

R60705 Zr705 Zirconium Pipe

,

B658 Zr705 Zirconium Pipe

,

Water Cooled Reactors Zirconium Pipe

Product Description

UNS R60705 Zirconium Pipe Zr705 In Water-Cooled Reactors Applications ASTM B658

Zirconium Pipe is an alloy tube material made of zirconium and other metals. Due to the excellent nuclear and corrosion resistance of zirconium, zirconium alloy pipes are often used in the nuclear fuel assemblies and in core structures of water-cooled reactors. Pure zirconium tube is mainly used to manufacture chemical equipment.

CHEMICAL COMPOSITION (NOMINAL)

Type Zr+Hf Hf Fe+Cr H N C O Nb
Zr702 >99.2 <4.5 <0.2 <0.005 <0.025 <0.05 <0.16 /
Zr705 95.5 <4.5 <0.2 <0.005 <0.025 <0.05 <0.18 2.0-3.0

Zirconium Pipe PHYSICAL PROPERTIES

Density: 6.51g/cm3
Melting Point: 1852°C
Thermal Conductivity: 22W/(m °C)
Elastic bend modulus: 99.3 GPa
Thermal Expansions: 5.4x10 /°C



PARAMETERS

  • Zirconium pipe outer diameter: 6.0-114 mm
  • Zirconium pipe wall thickness: 0.3-8.0 mm
  • Zirconium pipe length: ≤ 18000 mm

PACKAGING

Our Zirconium pipe is packaged externally to ensure efficient identification and quality control. In case of any damage which might be caused during storage and transportation.

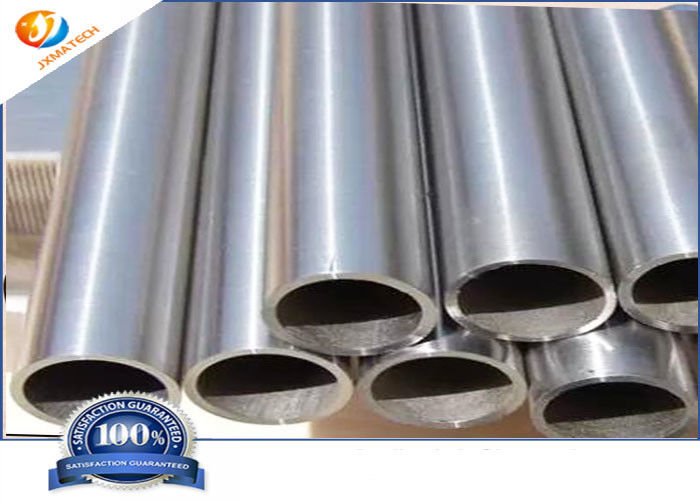

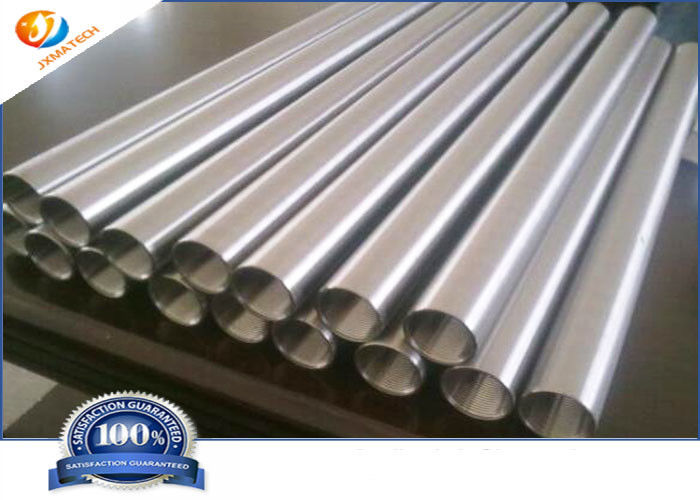

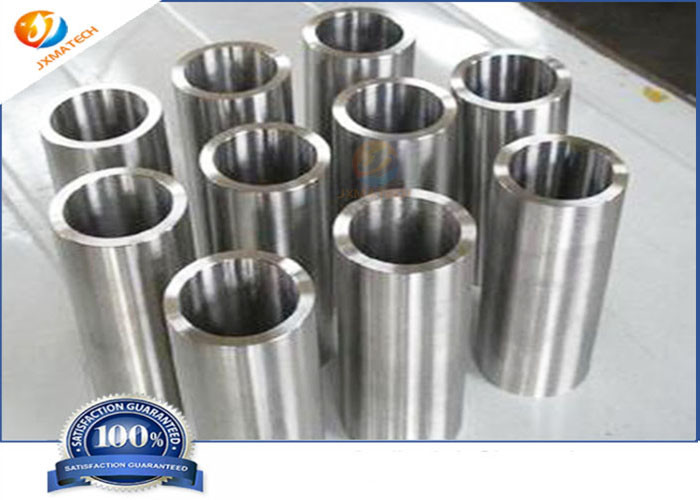

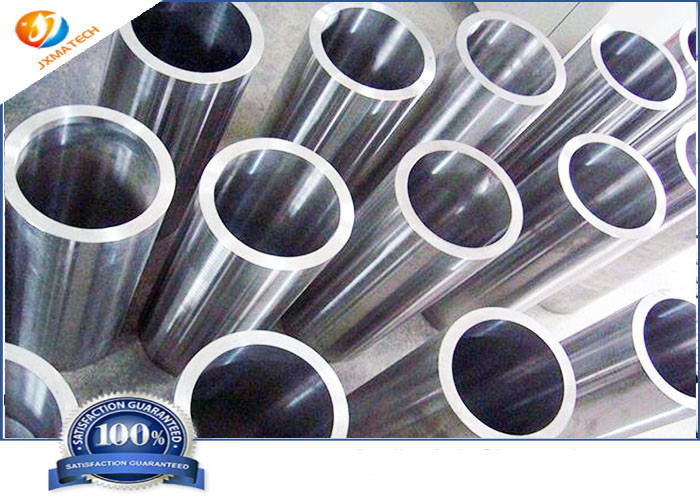

Zirconium Pipe Picture:

UNS R60705 Zirconium Pipe Zr705 In Water-Cooled Reactors Applications ASTM B658 0UNS R60705 Zirconium Pipe Zr705 In Water-Cooled Reactors Applications ASTM B658 1
