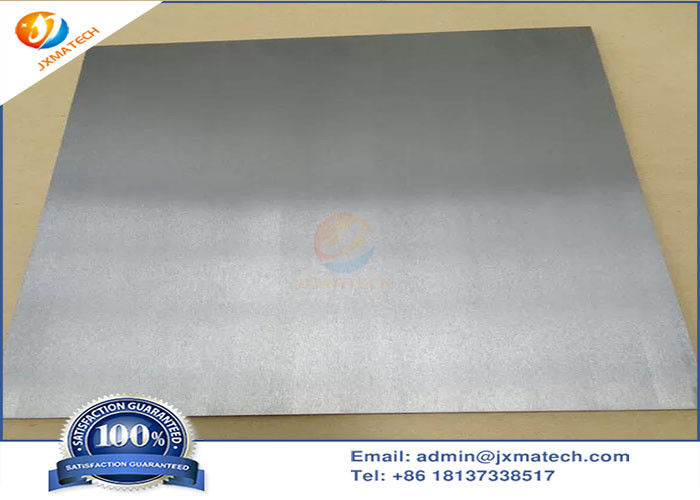

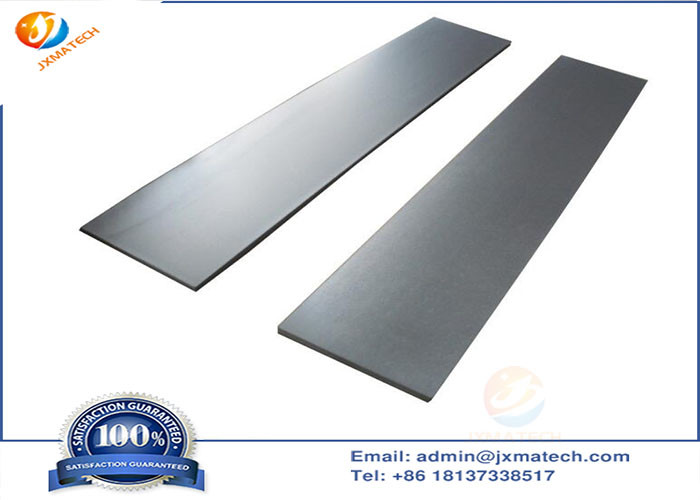

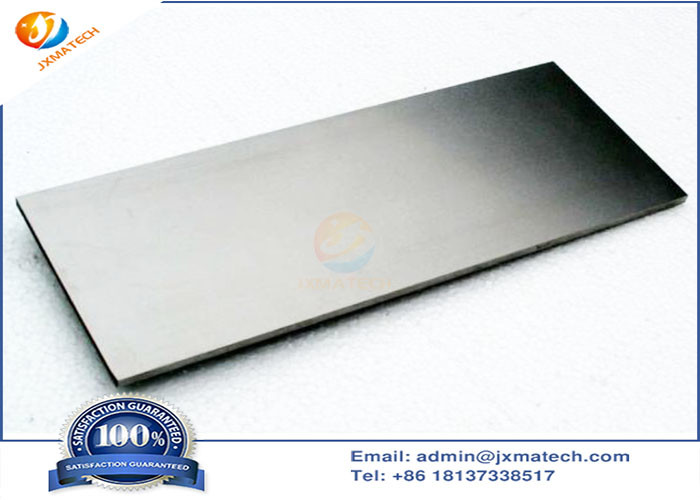

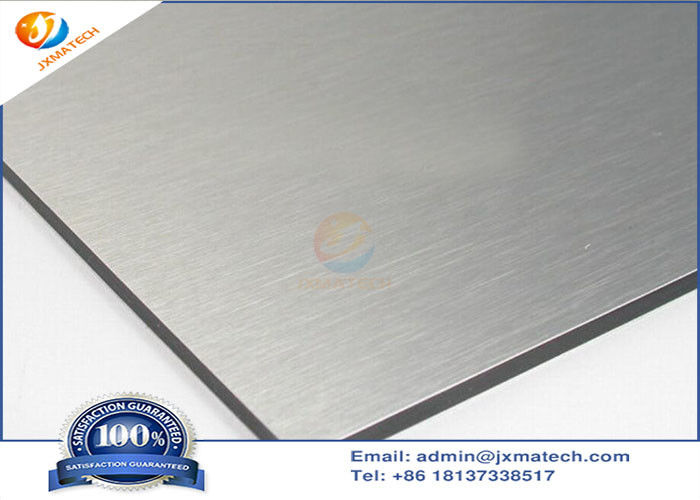

ZR0900 Polished Zirconium Plate 2mm Pure Zr 702 Sheet
ZR0900 Polished Zirconium Plate 2mm Pure Zr 702 Sheet
ZR0900 Polished Zirconium Plate 2mm Pure Zr 702 Sheet ZR0900 Polished Zirconium Plate 2mm Pure Zr 702 Sheet ZR0900 Polished Zirconium Plate 2mm Pure Zr 702 Sheet ZR0900 Polished Zirconium Plate 2mm Pure Zr 702 Sheet ZR0900 Polished Zirconium Plate 2mm Pure Zr 702 Sheet

ZR0900 Polished Zirconium Plate 2mm Pure Zr 702 Sheet

Product Details:
Place of Origin: China
Brand Name: Jx-ZR0900 Polished Zirconium Plate
Certification: ASTM B550
Model Number: ZR0900
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: USD
Packaging Details: Stadnard exported package
Delivery Time: 10-30days
Contact Now

Detail Information
Material: Zr702, Zr704, Zr705 Thickness: 0.5~50mm, Or 0.02"~2"
Width: <1000mm, Or 36" Length: <2000mm, Or 72"
State: Annealed Name: ZR0900 Polished Zirconium Plate 2mm Pure Zr 702 Sheet
Highlight:

ZR0900 Polished Zirconium Plate

,

2mm ZR0900 Zirconium Plate

,

2mm Zr 702 Zirconium Plate

Product Description

ZR0900 Polished Zirconium Plate



Processing technology of ZR0900 Zirconium Plate

The structure of Zirconium Sheet / Plate is closely related to the processing technology. The rolling temperature, deformation and heat treatment system all have influences on the structure, and the rolling temperature is the most important element among them.
During the forming of sheet, special attention should be paid to bite. Rebound tendency and crack phenomenon which is easily caused by nick should also be attached importance.



Multiple sizes are available and we do make customized products. High purity, 99.95% products made from zirconium crystal bars are also available.



Properties of ZR0900 Polished Zirconium Plate



Mechanical properties of Zirconium Sheet / Plate (under two different rolling processes)
Rolling technology Direction Rm/MPa Rp0.2/MPa A (%)
Forge once T 455 390 27
L 465 275 30
L-T difference 10 115 3
Forge twice T 450 275 31
L 450 280 32
L-T difference 0 5 1
ASTM B551 L >=380 >=205 >=165



Available sizes of our ZR0900 Zirconium Plate and zirconium sheets

ZR0900 Zirconium Plate Specification





Material Zr702, Zr704, Zr705
Thickness 0.5~50mm, or 0.02"~2"
Width <1000mm, or 36"
Length <2000mm, or 72"





ZR0900 Zirconium PlatePhysical Properties

Material State Rm(≥)/MPa Rp0.2(Pa A50mm(≥)/%

Zirconium 702

(UNS R60702)

 annealed 379 207 16

Zirconium 704

(UNS R60704)

 annealed 413 241 14

Zirconium 705

(UNS R60705)

 annealed 552 379

16



ZR0900 Polished Zirconium Plate 2mm Pure Zr 702 Sheet 0ZR0900 Polished Zirconium Plate 2mm Pure Zr 702 Sheet 1

ZR0900 Zirconium Plate Compositions

  Zr 702 Zr 704 Zr 705 Zircaloy-2 Zircaloy-4
Sn / 1~2% 1~2% 1.2~1.7% 1.2~1.7%
Fe <0.05% 0.1~0.2% <0.05% 0.07~0.2% 0.07~0.2%
Cr <0.05% 0.1~0.2% <0.01% 0.05~0.15% 0.05~0.15%
Ni / / / 0.03~0.08% <0.007%
Hf 1~2.5% <4.5% <4.5% <200ppm for Nuclear industry <200ppm for Nuclear industry
Nb / / 2~3%
Zn+Hf ~99.5% ~97.5% ~95.5% ~98% ~98%



ZR0900 Polished Zirconium Plate Packaging

Our Zirconium Plates are carefully handled to prevent damage during storage and transportation and to preserve the quality of our products in their original condition.
