Cold Rolling Coiled Zirconium Tube 702 UNS R60702 For Heat Exchanger
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JINXING |
| Certification: | ISO 9001 |
| Model Number: | Zirconium Welding Pipe |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50kgs |
| Packaging Details: | Plywood case |
| Delivery Time: | 25 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000kgs/M |
|
Detail Information |
|||
| Material: | Grade R60702 , R60704, R60705 | Surface: | Pickled Or Polished Surface |
|---|---|---|---|
| Process: | Drill And Rolling | Application: | Aerospace, Chemical And Heatexchanger |
| Standard: | ASTM , AMS , ASME | Type: | Seamless Or Welded |
| Inspection: | Eddy-Current And Ultrasonic Testing | Size: | Customized |
| Highlight: | Welded Seamless Zirconium Tubes,Grade R60702 Zirconium Tubes,Pickled Zirconium Tubes |
||
Product Description
Zirconium Tubes Welded or Seamless Zirconium Tube Pipe Professiona Zirconium Piping | Zirconium Pipe
XINXIANG FANMETAL TECH CO., LTD Inc is a global supplier of Zirconium (Zr) Tube / Pipe / Ring. Our Zirconium (Zr) Tube / Pipe / Ring are available in varying thicknesses and can be ordered to different sizes and specifications. Zirconium has a very low absorption cross-section of thermal neutrons, high hardness, and ductility, and corrosion resistance. One of the main uses of zirconium alloys is in nuclear technology, as a cladding of fuel rods in nuclear reactors, especially water reactors.
Applications Of Zirconium Tube Pipe
Due to its strength under high temperature and excellent corrosion resistance (especially for acetate acid) zirconium tubes/zirconium pipes are ideal for use in, but not limited to:
* Heat exchangers
* Chemical and biological reactors
* Condensers
* Various corrosive fluid transmission pipeline systems
* Offshore aquaculture
* Fuel rods in nuclear reactors
Chemical composition for Zirconium Tube Pipe
| Grade | Zr+Hf | Hf | Fe+Cr | Sn | H | N | C | O | Nb |
| R60702 | 99.2% | <4.5% | <0.20% | - | <0.005% | <0.015% | <0.030% | <0.15% | - |
| R60704 | 97.5% | <4.5% | 0.2-0.4% | 1.0-2.0% | <0.005% | <0.015% | <0.030% | <0.16% | - |
| R60705 | 95.5% | <4.5% | <0.2% | - | <0.005% | <0.015% | <0.050% | <0.16% | 2.0-3.0% |

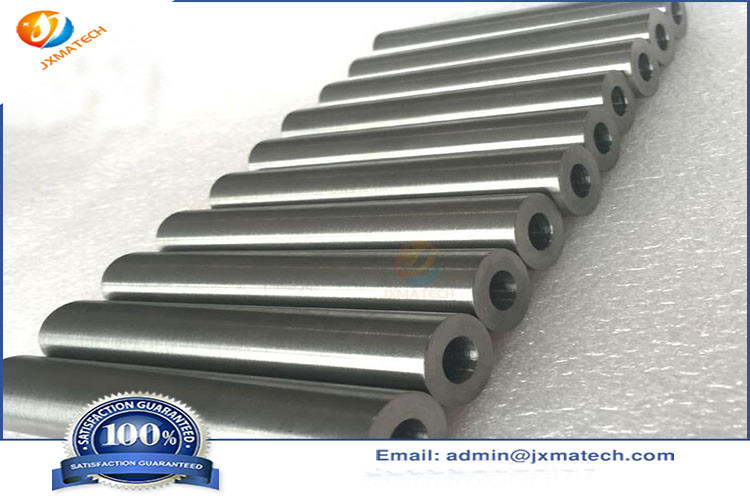

Zirconium Tube Pipe Professiona Picture;
