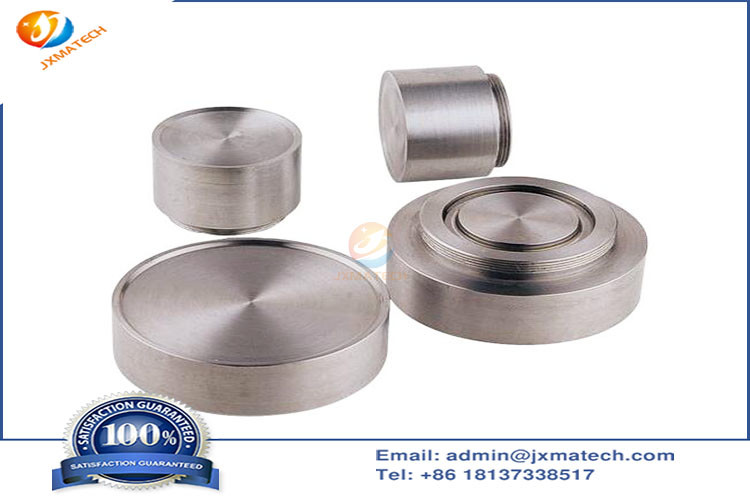

PVD Titanium Alloy Sputtering Target
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JINXING |
| Certification: | ISO 9001 |
| Model Number: | Zirconium Sputtering Target |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1kg |
| Packaging Details: | Plywood case |
| Delivery Time: | 10～25 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 100000kgs/M |
|
Detail Information |
|||
| Material: | Zirconium Zr702 | Process: | Forged |
|---|---|---|---|
| Size: | Customized | Application: | PVD Coating, Decorative Coating |
| Density: | 6.506g/cm3 | Shape: | Round , Plate , Tube Sputtering Target |
| Grain Size: | Fine Grain Size | Purity: | 99.5% , 99.95% |
| Highlight: | High Purity Metal Sputtering Targets,Zirconium Sputtering Targets,Zr702 Sputtering Targets |
||
Product Description
High Purity Metal Sputtering Targets
Zirconium is an active metal with a great affinity for oxygen, and the excellent corrosion resistance of the oxide film determines that it can be competent in multiple corrosive environments.
3. Zirconium has good corrosion resistance in nitric acid not more than 90% below 200℃. However, the stress corrosion cracking sensitivity of zirconium in nitric acid should be noted.
4. Zirconium is resistant to corrosion in all caustic soda solutions with even concentration. Corrosion resistance exceeds tantalum, niobium and titanium.
Applications Of Zirconium Sputtering Target
Zirconium Sputtering Targets with the highest possible density and smallest possible average grain sizes for use in semiconductor, chemical vapor deposition (CVD) and physical vapor deposition (PVD) display and optical applications.
Sizes:
Plate sputtering targets:
Thickness: 0.04 to 1.40" (1.0 to 35mm).
Width up to 20"(50 to 500mm).
Length: 3.9" to 6.56 feet( 100-2000mm)
other sizes as requested.
Cylinder sputtering targets:
3.94 Dia. x 1.58"(100 Dia. x 40mm)
2.56 Dia. x 1.58" (65 Dia. x 40mm)
or 63*32mm other sizes as requested.
Tube sputtering targets:
2.76 OD x 0.28 WT x 39.4”L (70 OD x 7 WT x 1000mm L)
3.46 OD x 0.39 WT x 48.4”L (88 OD x 10 WT x 1230mm L)
other sizes as requested.
