Tungsten Nickel Iron Alloy Weight Bolt
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JINXING |
| Certification: | ISO 9001 |
| Model Number: | Tungsten Heavy Alloy |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1kg |
| Price: | 30~150USD/kg |
| Packaging Details: | Plywood Case |
| Delivery Time: | 10~25 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10000kgs/M |
|
Detail Information |
|||
| Material: | Tungsten HD Alloy WNiFe / WNiCu | Surface: | Bright Ground Finished |
|---|---|---|---|
| Standard: | ASTM B777 , AMS-T-21014 | Dimensions: | Customized |
| Application: | Balance Weight, Ball Bearing, Aerospace | ||
| Highlight: | Wearing Resistance Tungsten Heavy Alloy,Tungsten Heavy Alloy Industry Parts,Tungsten HD alloy WNiFe |
||
Product Description
Tungsten heavy alloy bar (WNiFe, WNiCu alloy)according to standard ASTM B777 , AMS- T 21014 , density HD 17 , HD 17BB , HD 17D , HD 17.5 , HD17.7 , HD 18 , HD 18D , HD 18.5 g/cm3 , including 90WNiFe, 93WNiFe , 95WNiFe , 97WNiFe , 90WNiCu, 93WNiCu , 95WNiCu , 97WNiCu etc.

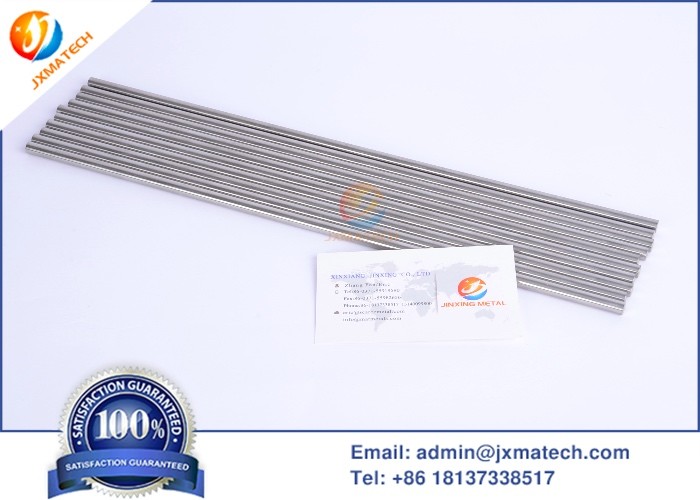

Tungsten alloy bar is produced by pressing and sintering metal powders into billets, which are worked by rolling or swaging into rod. Smaller sizes are produced by subsequent drawing. Tungsten alloy rod is produced in straight random lengths with a smooth swaged surface at diameters 3mm and larger, and with a smooth drawn finish below 3mm. A centerless ground finish can also be furnished. Specific lengths and special fabrications can be supplied upon request.
1, Diameter: 2.0-100.0mm (according customer required)
2, Length: 50-1000mm
3, Density: 15.8-18.75 g/cm3
4, Composition: W content: 85-99%, W-Ni-Fe, W-Ni-Cu
5, Surface: Sintering surface, Forged surface, Ground surface
| HD 17 | HD 17BB | HD 17D | HD 17.5 | HD17.7 | HD 18 | HD 18D | HD 18.5 | |
| 90%W 6% Ni 4% Cu |
90% W 6% Ni 4%Cu/Fe |
90% W 7% Ni 3% Fe |
92.5% W 5.25%Ni 2.25%Fe |
93WBalanceNi FeMo | 95% W 3.5%Ni 1.5%Cu |
95% W 3.5% Ni 1.5% Fe |
97% W 2.1% Ni 9% Fe |
|
| Density Gms/cc | 17 | 17 | 17.5 | 17.7 | 18 | 18 | 18.5 | |
| Hardness Rockwell | 24 | 25 | 26 | 30 | 27 | 27 | 28 | |
| Ultimate Tensile Strength (PSI) | 110,000 | 125,000 | 114,000 | 130,000 | 115,000 | 125,000 | 128,000 | |
| Yield Strength .2% offset (PSI) | 90,000 | 88,000 | 90,000 | 90,000 | 85,000 | 90,000 | 85,000 | |
| Elongation (% in 1") | 8 | 14 | 12 | 10 | 7 | 12 | 10 | |
| Coefficient of Thermal Expansion X 10-6/°C (20-400°C) | 5.4 | 4.8 | 4.6 | 4.5 | 4.4 | 4.6 | 4.5 | |
| Thermal Conductivity(CGS Units) | .23 | .18 | .20 | 27 | .33 | .26 | .30 | |
