High Purity Molybdenum Discs Mo Targets
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JX |
| Certification: | ISO |
| Model Number: | Molybdenum Alloy Strip |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10kgs |
| Price: | according to actual products |
| Packaging Details: | standard packing |
| Delivery Time: | 25days |
| Payment Terms: | T/T |
| Supply Ability: | 300kgs month |
|
Detail Information |
|||
| Size: | As Request | Quality: | ISO9001:2008 |
|---|---|---|---|
| Surface: | Polishing,burnishing,black Surface | Delivery Time: | 25days |
| Packing: | Standard Exporting | Name: | Molybdenum Alloy Strip |
Product Description
Molybdenum Alloy Strip Description:
TZM Molybdenum alloy
Purity: Mo ≥ 99.20%
Density: ≥ 10.10g/cm3
Diamension: By users' drawing
Dimension: according to user's requirement.
The dimension and tolerance are accord with national standard.
Appearance: It`s black brown, and will turn to a silver metallic luster after alkali-washing
Application: High-temperature strove structural material, Radiation resisting shielding material, heat element, electric semiconductor device, etc.
| Important Element Content(%) | Other Element Content(%) | ||||||
| C | Ti | Zr | Fe | Si | Ni | O2 | N2 |
| 0.01-0.04 | 0.40-0.55 | 0.07-0.12 | 0.02 | 0.01 | 0.01 | 0.003 | 0.002 |
| Commodity Name | TZM Molybdenum Alloy Strip |
| Material | TZM(Ti0.5/Zr0.1), TZM(Ti0.5-Zr0.08) |
| Specification | as per customer's needs |
| Density | >=10.2g/cm3 |
| Type | Titanium Zirconium Molybdenum Alloy |
| Purity | Tzm(Ti0.5/Zr0.1), Tzm(Ti0.5-Zr0.08) |
| Surface treatment | ground, polished,machined |
| Technique | Powder Metallurgy |
| Certificate | ISO 9001:2015 |
| Standard | ASTM B386 Type 364 |
| Application | TZM is widely used in the aerospace, aviation and other industries. It could be used as nozzle material, valve body, gas piping materials, tubes in the gate material, die casting molds, extrusion dies and high temperature furnace element and heat shield etc |
| Advantages of TZM compared to pure molybdenum | 1. Above 1100°C tensile strength is about twice that of unalloyed molybdenum. 2. Better creep resistance. 3. Higher recrystallization temperature. 4. Better welding properties. |
| Production lead time | 7-15 days |

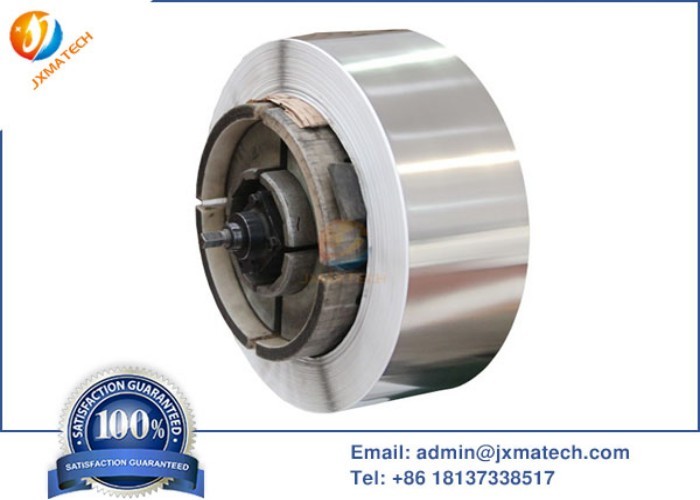

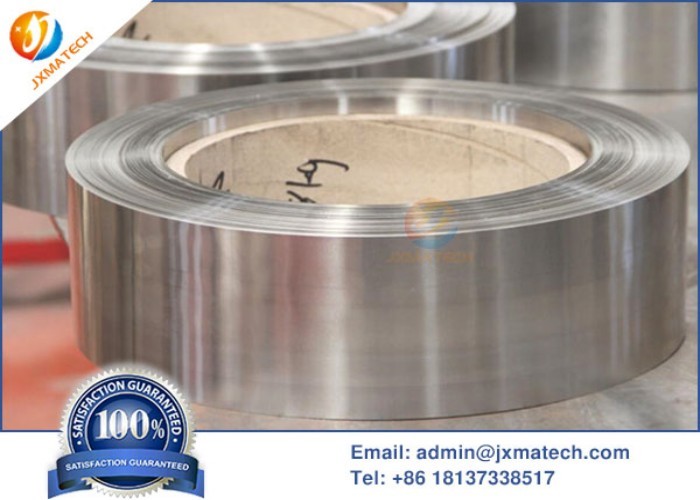

Molybdenum Alloy Strip Picture:
Molybdenum alloy:
MLR plate, MLR rods, TZM plate/slab, TZM sheet/foil, TZM rod, TZM bar/strip, TZM wire, TZM tube/pipe/duct, and other molybdenum alloy products.
Molybdenum alloy
Pure molybdenum
TZM
Mo-La
Mo-Cu
Mo-W

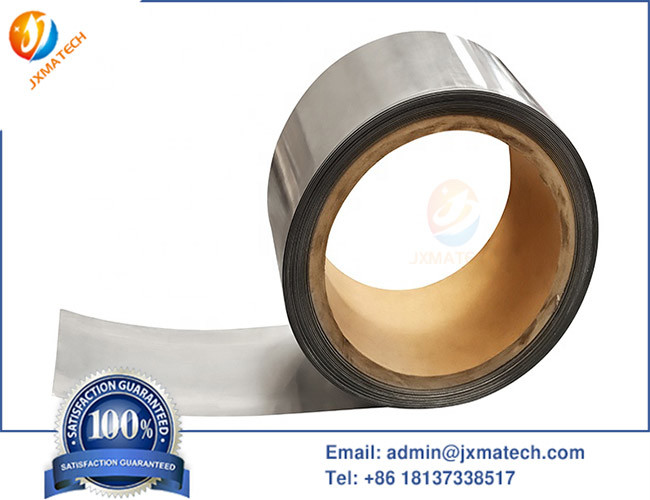

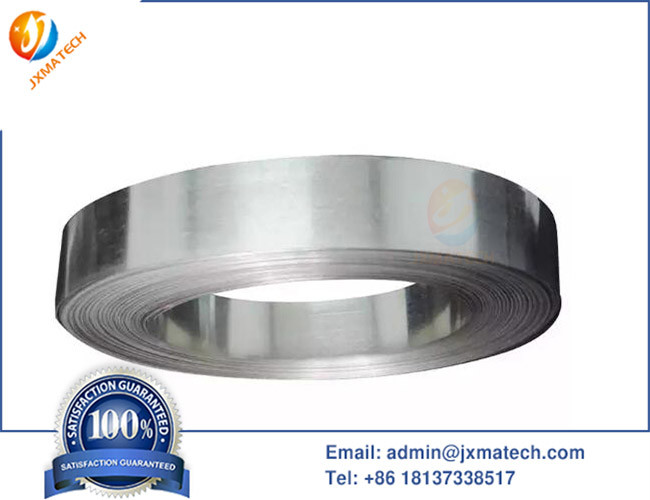

Molybdenum Alloy Strip Picture:
