Silver Tungsten Electrode

Product Details:
Place of Origin:	China
Brand Name:	JINXING
Certification:	ISO 9001
Model Number:	Silver Tungsten Electrode
Payment & Shipping Terms:
Minimum Order Quantity:	1kg
Price:	15~150USD/kg
Packaging Details:	Plywood Case
Delivery Time:	10~25 work days
Supply Ability:	100000kgs/M

Contact Now

Detail Information
Name:	Silver Tungsten Electrode	Advantage:	Excellent Welding
Application:	Excellent Welding	Standard::	EN26848/ISO6848
Operating Curre:	150-250 A	Density::	11.86g/cm3 Min

Product Description

Silver Tungsten Electrode

Silver Tungsten Electrode (W-Ag), also known as tungsten-silver alloy, is a composite material of tungsten and silver. Silver and tungsten are not compatible. Binary alloys of silver and tungsten are usually manufactured by powder metallurgy. Tungsten-silver electrodes have high hardness, high electrical conductivity, thermal conductivity, arc corrosion resistance, small welding material transfer, and combustion-resistant tungsten are combined into tungsten-silver sintered materials.

Popular applications for our silver tungsten electrodes include wire harnesses in automotive electrical components, circuit switches for battery packs, and electrical components and circuit breakers for electrical switch production lines. Our silver tungsten electrodes are also used in the manufacturing process of Li-ion batteries and Ni-MH batteries, as well as welding battery barrels.

Tungsten electrodes have the following advantages:

* Better cutting mechanical properties

* Better creep resistance

*High temperature recrystallization

* Good ductility

Silver Tungsten Electrode Specification

Grade	Ag%(WT)	W%(WT)	Density (Min)	Electric Conductivity (Min)	Hardness (Min)
AgW55	45±2	Balance	13.55g/cm3	58%IACS	115HB
AgW60	40±2	Balance	14.00g/cm3	56%IACS	125HB
AgW65	35±2	Balance	14.50g/cm3	53%IACS	135HB
AgW70	30±2	Balance	14.90g/cm3	51%IACS	150HB
AgW75	25±2	Balance	15.40g/cm3	48%IACS	165HB
AgW80	20±2	Balance	16.10g/cm3	45%IACS	180HB

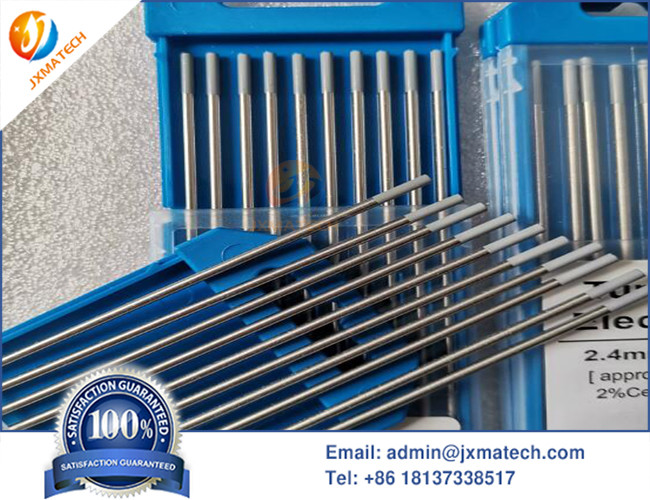

Silver Tungsten Electrode Picture:
Silver Tungsten Electrode 0 Silver Tungsten Electrode 1

Silver WC data sheet

Grade	Ag%(WT)	WC%(WT)	Density (Min)	Electric Conductivity (Min)	Hardness (Min)
AgWC50	50±2	Balance	12.20g/cm3	29%IACS	85HRB
AgWC40	60±2	Balance	11.70g/cm3	34%IACS	72HRB
AgWC30	70±2	Balance	11.20g/cm3	36%IACS	57HRB

Many silver tungsten electrode utilize silver tungsten alloys that contain between 25-50 percent silver, so they are idea for refining. We can also extract and refine silver tungsten sheet, wire, rod and plate byproduct material.
