Tungsten W Foil Tape
|
Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | JX |
| Certification: | ISO 9001 |
| Model Number: | Tungsten Electrode Welding Tungsten Welding Electrodes WT20 Red |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10kg |
| Price: | Negotiable |
| Packaging Details: | plywood cases |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 500 kg per month |
|
Detail Information |
|||
| Product Name: | Tungsten Electrode Welding Tungsten Welding Electrodes WT20 Red | Grade: | W |
|---|---|---|---|
| Purity: | >=99.95% | Tensile Strength: | >320 MPa |
| Elongation: | <21% | Standard: | ASTM B387-2010 |
| Application: | Semiconductor Industry | ||
| Highlight: | Tungsten Welding Electrodes,WT20 Red Tungsten Electrodes,Semiconductor Industry Tungsten Electrodes |
||
Product Description
Tungsten Electrode Welding Tungsten Welding Electrodes WT20 Red
Tungsten Electrode Welding is primarily used in military and aviation industry with narrow arc beam, high compressing strength, highest welding penetration at medium and high current.
Tungsten Electrode Welding Specification
| Type | Designation | Current | Welding Method | Application |
| 1% Lanthanated-Tungsten electrode | WL10 | DC Small Current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 1.5% Lanthanated-Tungsten electrode | WL15 | DC Small Current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 2% Lanthanated-Tungsten electrode | WL20 | AC/DC Small/Large Current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 2% Thoriated- Tungsten Electrode | WT20 | DC Large current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 2% Ceriated- Tungsten electrode | WC20 | DC Small current | Manual welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 0.3% Zirconium-Tungsten electrode | WZr3 | AC current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| 0.8% Zirconium-Tungsten electrode | WZr8 | AC current | Manual welding, automatic welding | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc |
| Pure Tungsten electrode | WP | AC current | Manual welding, automatic welding | Aluminum alloy, copper alloy, thermal spraying, special light source anode, etc |

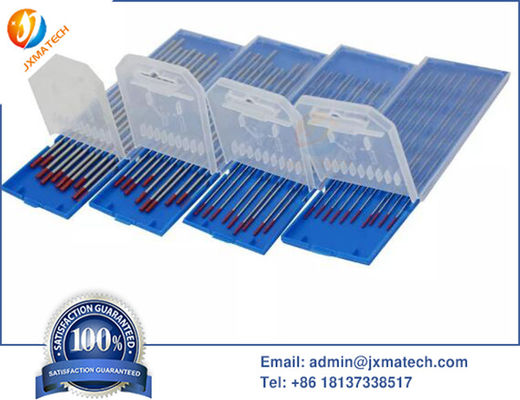

Tungsten Electrode Welding Picture:
Tungsten series
W≥99.95%: tungsten wire/sheet/plate/rod
(W≥99.95%) Special shape parts: tungsten tube / crucible / boat / heat shield / mesh, can be provided according to customer drawings
Tungsten alloy: tungsten copper (W90Cu10/W80Cu20/W70Cu30, etc.) sheet/plate/rod, etc.
Tungsten alloy: heavy tungsten alloy (WNiFe, WNiCu, etc.) sheet/rod/ball, other parts as per drawing
Tungsten alloy: tungsten carbide (WC%, Co%) rods, sheets, plates, etc.
Tungsten alloy: WT20, WC20, WL15, WL20, WP and other TIG welding tungsten electrodes
Packing & Delivery
1.10pcs/plastic box attached labels, 20 plastic boxes/ plain carton
2.Common Carton size: 420*220*230mm.
3.Other packing will be accept according to your requirements.
