Dia 1.0mm Thermocouple Sensor Platinum Iridium Wire

Platinum Iridium Wire For Thermocouple Sensor

The alloy 90/10 plat iridium, containing 10 per cent iridium, has very good all round manufacturing characteristics: it can be cast, welded, machined and stamped; it is ductile and malleable; can be hardened through working;

Technical Data for Platinum/Iridium wire

Diameter:,0.1mm,0.2mm,0.5mm/0.7mm/1.0mm/1.3mm/1.5mm/1.6mm/2.0mm/2.1mm/2.5mm/3.0mm/4.0mm5.0mm.

Packing: 1m/10m/100m/spool or100g/200g/300g/500g/spool or as required.

Density G/CM:21.53

Vivtorinox hardness Soft:130

Vivtorinox hardness Hard:230

Place of Origin:XINXIANG China

Certification:ISO,SGS

Model Number:Pt-Ir Wire

Payment & Shipping Terms:

Electrical Properties

Electrical resistivity ( µOhmcm ): 25

Temperature coefficient ( K-1 ): 0.0013

Mechanical Properties

Elongation at break ( % ) <25

Hardness - Brinell 130-190

Tensile strength ( MPa )380-620

Product uses: 1. Used for ammonia oxidation to produce nitric acid. 2. Used to make jewelry, wires, laboratory containers, thermocouples, corrosion-resistant equipment. 3. Used in electrical apparatus and chemical industry. 4. Used for manufacturing precision alloys. 5. Used as catalyst, oxidant and gas absorbent. 6. Laboratory of scientific research institute, do high temperature test Zai

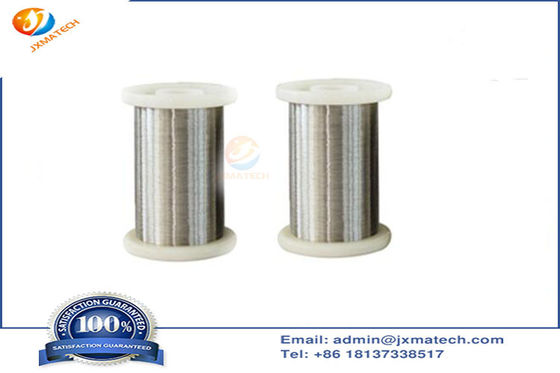

Platinum Iridium Wire For Thermocouple Sensor Picture:
