High Purity Zirconium Zr Crucible
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JINXING |
| Certification: | ISO 9001 |
| Model Number: | Zirconium |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 5kgs |
| Price: | 30~150USD/kg |
| Packaging Details: | Plywood case |
| Delivery Time: | 10~25 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10000kgs/M |
|
Detail Information |
|||
| Material: | Zr 700 , Zr 702 , Zr 704 , Zr 705 | Standard: | ASTM B550 |
|---|---|---|---|
| Process: | Swage Forge, Forge, Hot Rolling | Heat Treatment: | Solution Annealed |
| Surface: | Polished Surface | Density: | 6.51g/cm3 |
| Shape: | Square Bar, Round Bar, Hexagonal Bar, | Size: | Dia.: 3mm - 400mm |
| Highlight: | 6.51 g/Cm3 Zirconium Bar,Zr 705 Zirconium Bar,Zirconium Bar For Nuclear Power Rods |
||
Product Description

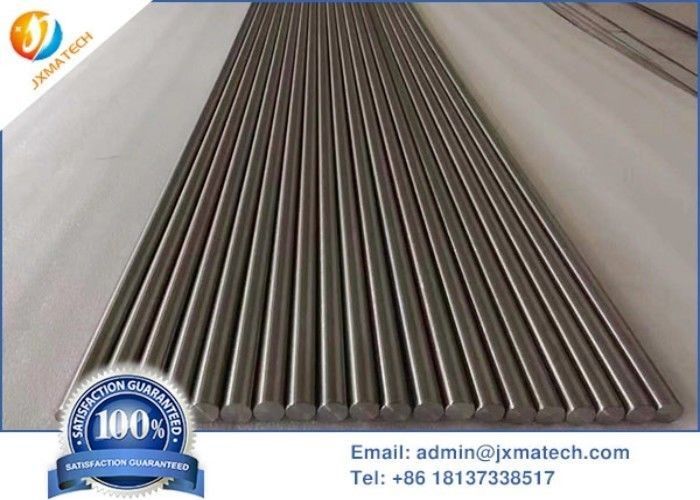

Zirconium rod is our main products. They are available in varying diameters , zirconium rods also act as raw materials for other zirconium products, like crucibles and reactors, and can be consumed in zirconium electrodes.
Zirconium products, such as these rods, have many uses in medical equipment, Zirconium (Zr) 702, 705 UNS R60702 60705 Rod can be made according to standard ASTM B550/B550M-07 . And UNS R60700 rod can be made by ASTM 351;
Process: forging, rolling, lapping, polishing.
Chemical Composition:
| Grade | Element composition (%) < | ||||||||
| Zr+Hf | Hf | Fe+Cr | Sn | H | N | C | Nb | O | |
| R60702 | 99.2 | 4.5 | 0.20 | -- | 0.005 | 0.025 | 0.05 | -- | 0.16 |
| R60704 | 97.5 | 4.5 | 0.20~0.40 | 1.0~2.0 | 0.005 | 0.025 | 0.05 | -- | 0.18 |
| R60705 | 95.5 | 4.5 | 0.2 | -- | 0.005 | 0.025 | 0.05 | 2.0~3.0 | 0.18 |
Machanical Properties:
| Material | State | Rm (≥)/MPa | Rp0.2 (≥)/MPa | A50mm (≥)/% |
| Zirconium 702 (UNS R60702) | Annealed | 379 | 207 | 16 |
| Zirconium 704 (UNS R60704) | Annealed | 413 | 241 | 14 |
| Zirconium 705 (UNS R60705) | Annealed | 552 | 379 | 16 |
