Silver Palladium Alloy Sheet 304～385mpa Tensile Strength For Electronic Industry

Product Description

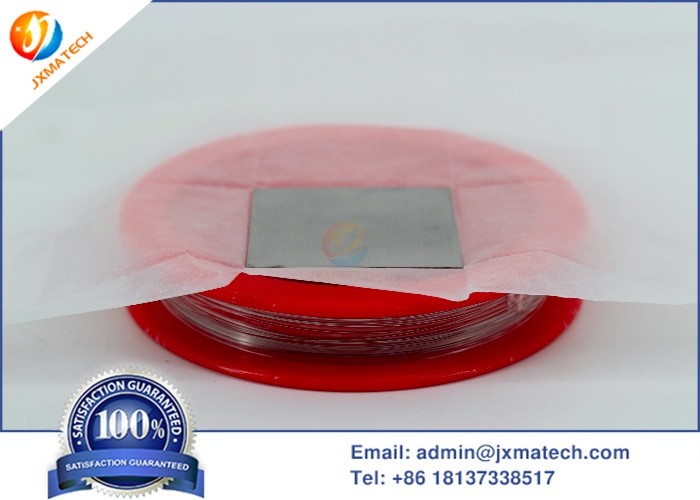

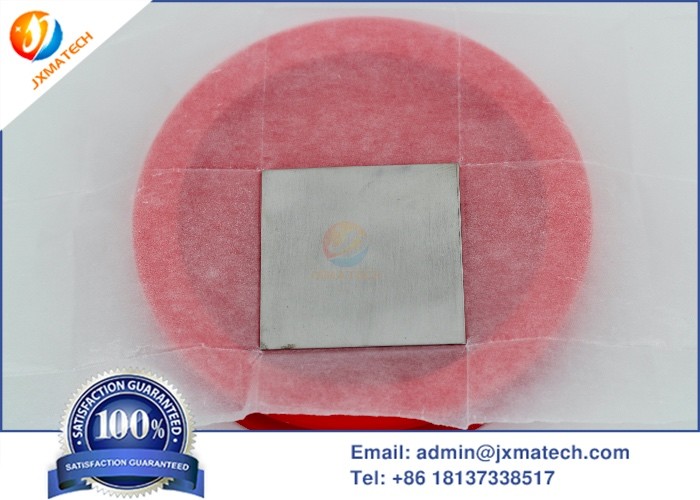

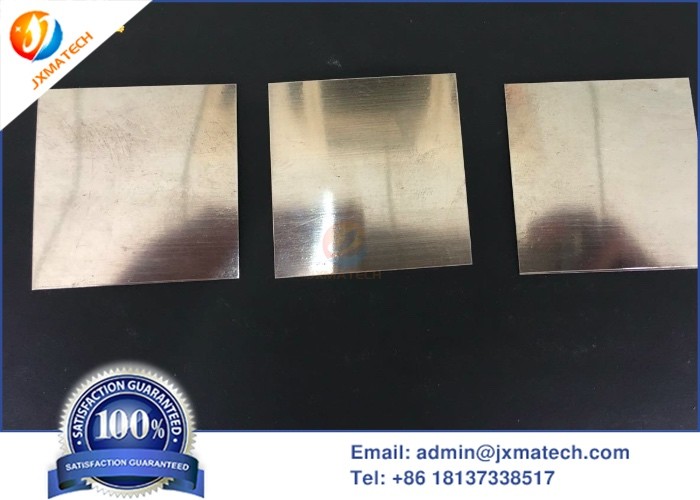

Palladium-Silver alloy sheet

Palladium-Silver alloy sheet is a binary alloy based on palladium with silver added.

Palladium and silver can be infinitely miscible to form a continuous solid solution. There are many kinds of alloys such as pdag23, pdag25, pdag30, pdag40, etc. they have strong hydrogen absorption capacity and selective hydrogen permeation capacity, and the hydrogen purity can reach 99.99999% after filtration

An alloy of silver and other elements added to palladium. It is the largest palladium alloy. It is a continuous solid solution, the liquidus is very close to the solidus, and the melting point of palladium drops smoothly to the melting point of silver; the maximum values of resistivity and tensile strength are located at 38% and 30% - 40% of silver respectively. Palladium silver alloy is cheap and widely used, which plays an important role in palladium alloy.

Palladium and Palladium Alloy:

Pure palladium: mainly including palladium powder, palladium wire, palladium belt, palladium tube, palladium rod and pure palladium profile, which can be used as electric contact material, hydrogen purification material, solder, thermocouple material, catalyst, fuel cell electrode, etc;

Palladium silver alloy: the main brands are pdag10, pdag23, pdag30, pdag40, pdagcu, pdagaini, etc., which can be used as electrical contact materials, resistance strain materials, high-purity hydrogen purification materials, fuel cell electrodes, solders, etc;

Palladium iridium alloy: mainly including palladium powder, palladium wire, palladium belt, palladium tube, palladium rod and pure palladium profile, which can be used as electric contact material, hydrogen purification material, solder, thermocouple material, catalyst, fuel cell electrode, etc;

Other palladium alloys: the main brands are pdagcuaautzn, PdCu, PdNi, etc.,

which can be used as brush materials and high-temperature solder.
