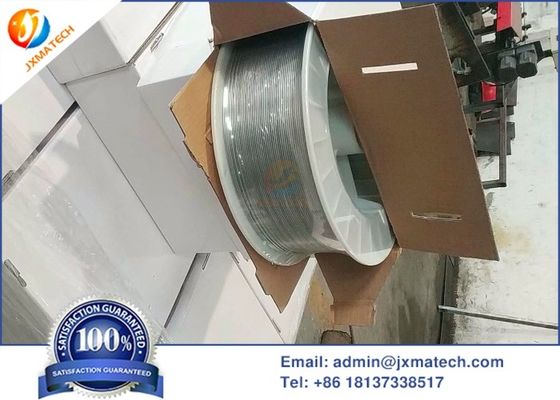

Standard AWS A5.24 Zirconium Welding Rod With Black / Polished Surface

Zirconium Welding Rod 1.6mm/2.4mm/ 3mm standard AWS A5.24

Zirconium is resistant to boiling points in sulfuric acid and higher than the boiling point. Its concentration can reach 70%. Zirconium can resist certain highly corrosive environments including various inorganic acids (hydrochloric acid, sulfuric acid, nitric acid, etc.), alkalis, and most organic acids (such as hydrochloric acid , Formic acid, etc.) of various salt solutions and molten alkali. Corrosion resistance in sodium hydroxide medium is the same as nickel.

SPECIFICATIONS; ANSI/AWS A5.24 ERZR2 ASME SFA A5.24 ERZR2

• Description

Zirconium Welding Rod 1.6mm/2.4mm/ 3mm standard AWS A5.24

Zirconium welding rod is one of our main products.It is available in varying specification

Zirconium welding rod diameter ( 0.8mm, 0.9mm , 1.0mm , 1.2mm , 1.6mm , 2.4mm, 3.0mm)

TYPICAL CHEMISTRY (%) & WELD METAL PROPERTIES;

AWS Spec.

Zirconium + Hafnium 99.0 min

Hafnium 4.50 max.

Iron + Chromium 0.20 max.

Oxygen 0.11-0.15 Elongation in 2” 16% min.

Nitrogen 0.015 max.

Carbon 0.030 max.

Hydrogen 0.005 max.

Tensile Strength (psi) 55,000

Yield Strength (psi) 30,000

AVAILABLE SIZES: .045, 1/16, 3/32, 1/8
